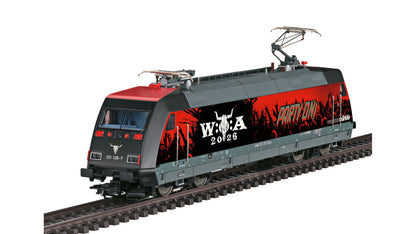

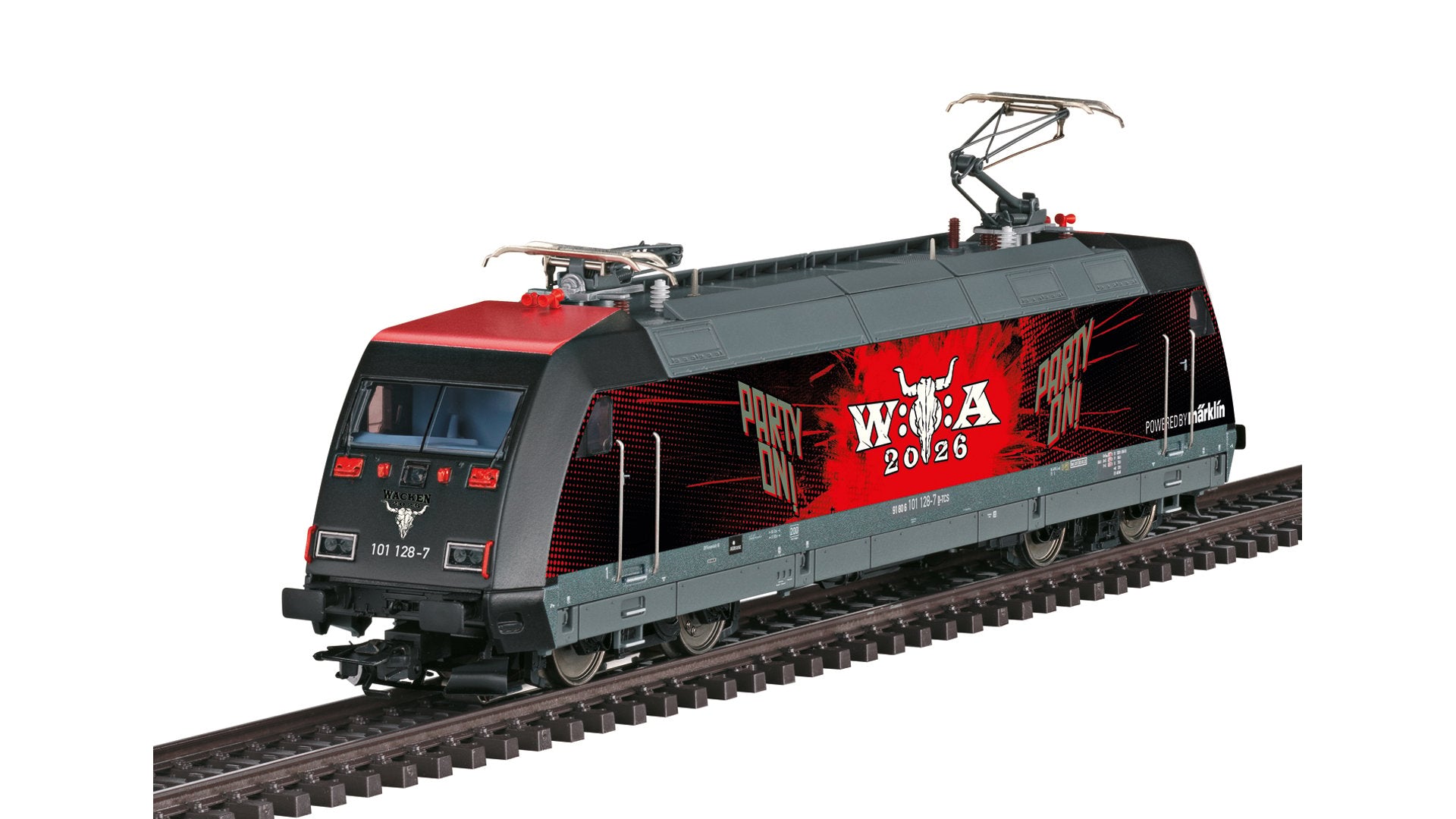

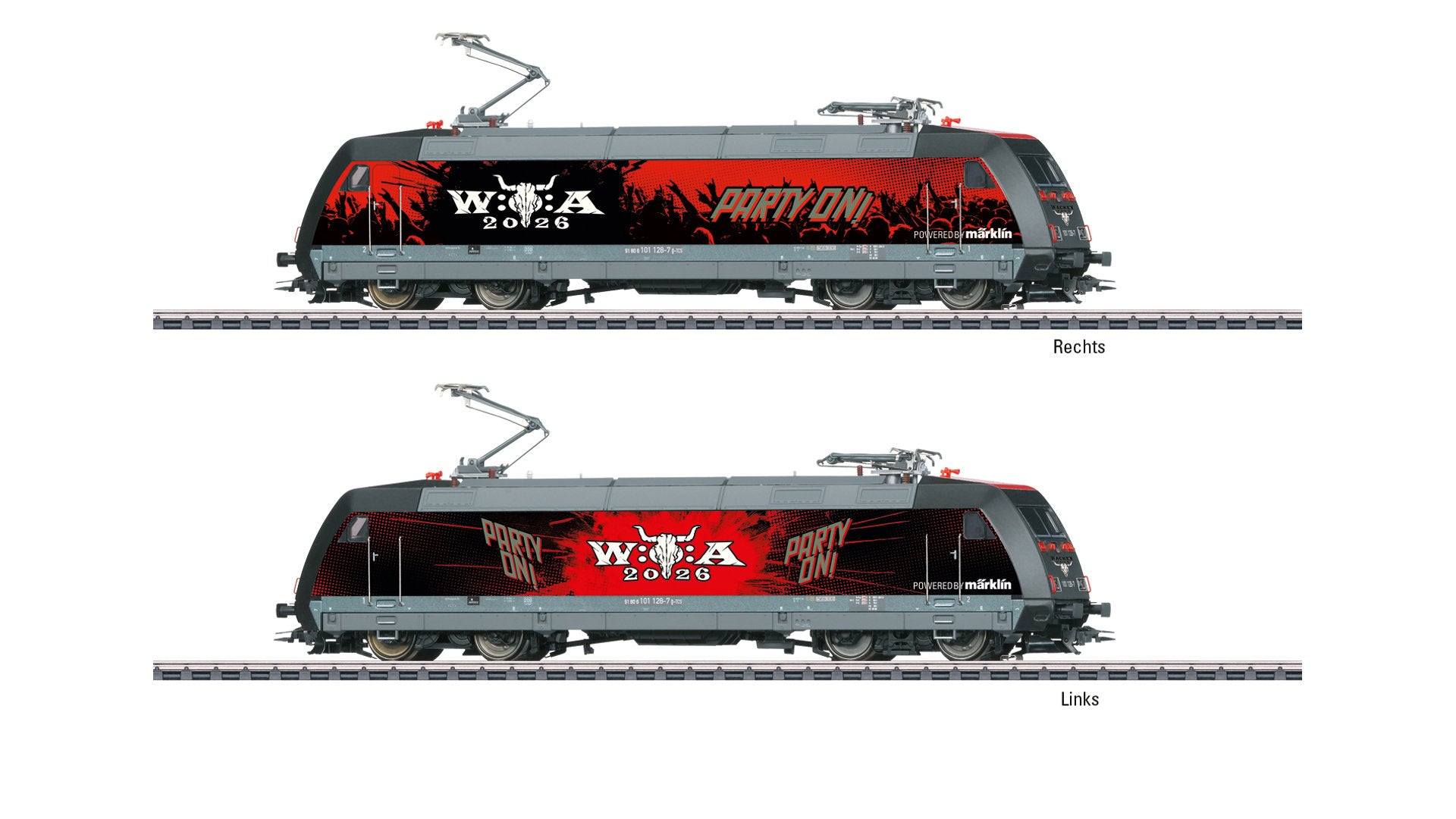

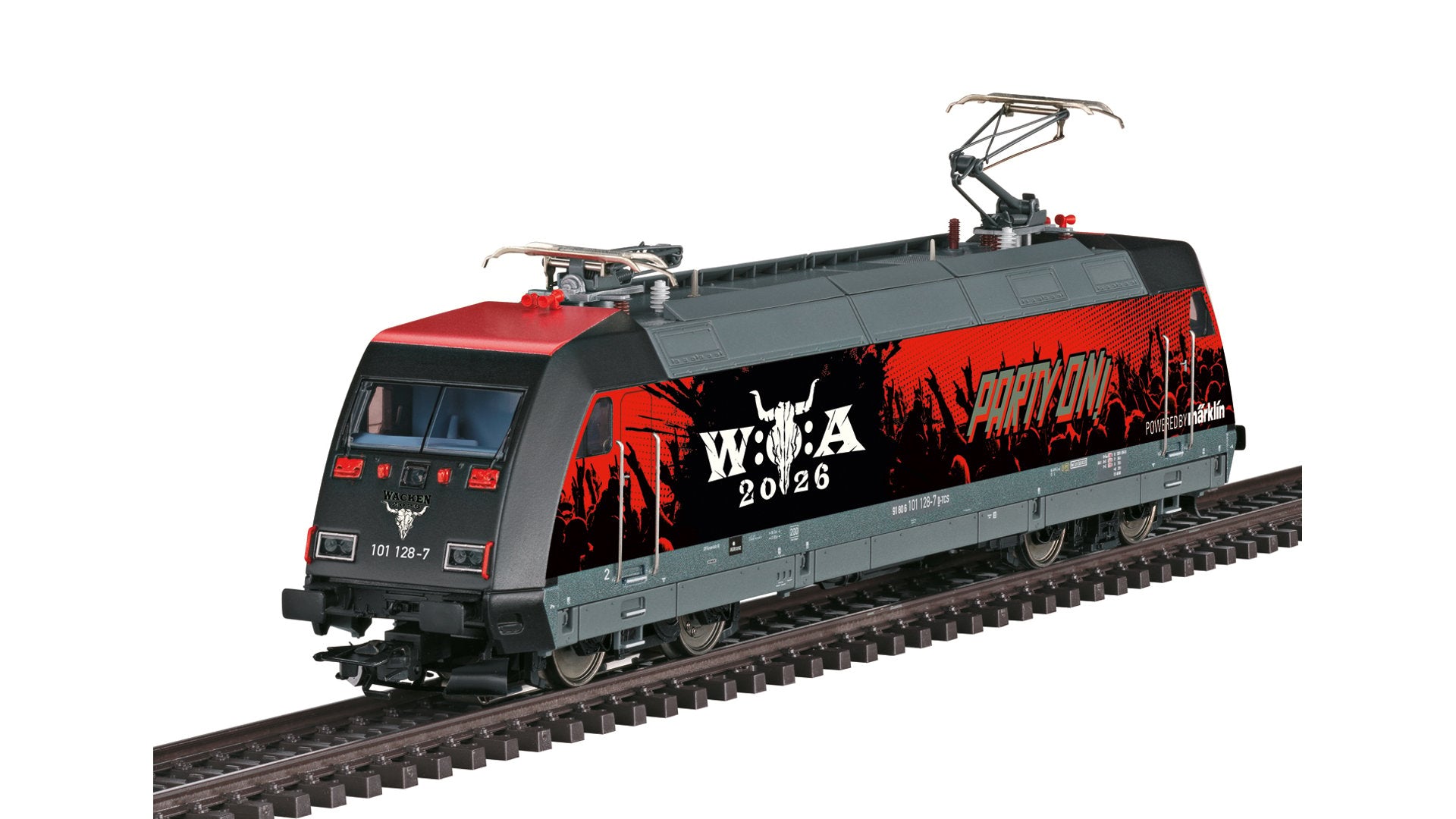

Märklin 39476 Class 101 W:O:A® Electric Locomotive
Model: The loco has an mfx+ digital decoder and extensive sound functions. It also has a controlled high-performance motor. Four axles are powered. Traction tires are fitted. Triple headlights and dual red marker lights change end with the direction of travel, will work in conventional operation, and can be controlled digitally. The long-distance headlights are separately controllable. The cab lighting is digitally controllable. The headlights at no. 1 and no. 2 ends can be turned off separately in digital operation. When the headlights are off at both ends, the double “A” light function is on at both ends. Maintenance-free, warm-white, and red LEDs are used for the lighting. A buffer capacitor to bridge short unpowered sections of track is fitted. The model has couplers with a guide mechanism. Length over the buffers 21.9 cm / 8-5/8".
A DC version of this model is available in the Trix H0 range as item 25476.
Find more Märklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
One-time series.
Highlights:
- Attractive special design for the Wacken Open Air (W:O:A®).
- A buffer capacitor to bridge short unpowered sections of track is fitted.
- Centrally mounted motor, all 4 axles driven.
- Cab lighting.
- The model has couplers with a guide mechanism.
- World of Operation mfx+ decoder and extensive light and sound functions included.
Prototype: Class 101 express locomotive with a special design for the Wacken Open Air (W:O:A®) music festival. The loco looks as it did in 2026.
Digital Functions:
| Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
|
| Headlight(s) | • | • | • | • | • |
| Long distance headlights | • | • | • | • | • |
| Electric locomotive op. sounds | • | • | • | • | • |
| Horn | • | • | • | • | • |
| Direct control | • | • | • | • | • |
| Sound of squealing brakes off | • | • | • | • | |
| Engineer’s cab lighting | • | • | • | • | |
| Headlight(s): Cab2 End | • | • | • | • | |
| High Pitch Horn | • | • | • | • | |
| Switching maneuver | • | • | • | ||
| Headlight(s): Cab1 End | • | • | • | ||
| Conductor's Whistle | • | • | • | ||
| Blower motors | • | • | • | ||
| Compressor | • | • | • | ||
| Letting off Air | • | • | • | ||
| Sound of squealing brakes off | • | • | • | ||
| Special sound function | • | ||||
| Special sound function | • | ||||
| Beer bottle | • | ||||
| Special sound function | • | ||||
| Special sound function | • | ||||
| Sanding | • | ||||
| SIFA warning sound | • | ||||
| Sound of uncoupling | • | ||||
| Opening cab door | • | ||||
| Rail Joints | • | ||||
| Pantograph Sounds | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Length over the buffers approximately 2.19 cm
- Scale: H0 (1:87)
- Type: Electric Locomotives
Warning
|
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
