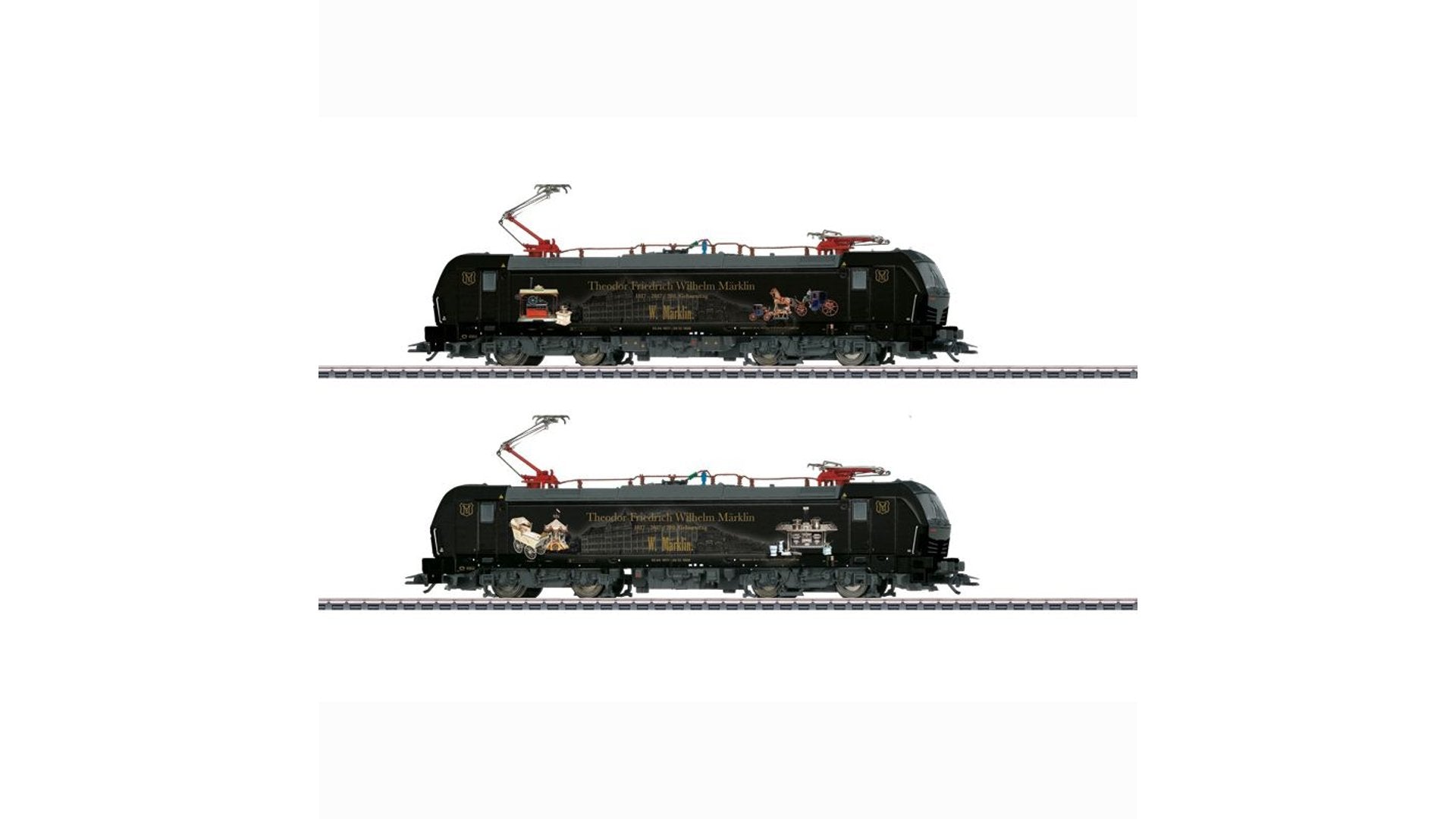

Marklin 36187 Class 193 Electric Locomotive
Model: The locomotive is constructed of metal and has an mfx digital decoder and extensive sound functions. It also has a special motor, centrally mounted. 4 axles powered through cardan shafts. Traction tires. Triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights at Locomotive End 2 and 1 can be turned off separately in digital operation. When the headlights at both ends of the locomotive are turned off, then the double "A" light function is on at both ends. Maintenance-free, warm white and red LEDs are used for the lighting. The locomotive has 2 mechanically working pantographs (no electrical pickup from catenary). Length over the buffers 21.8 cm / 8-9/16".
Highlights:
- 200th birthday of Theodor Friedrich Wilhelm Marklin 1817 - 2017.
- Limited worldwide to 1,817 pieces.
- Locomotive includes a built-in mfx decoder and a variety of light and sound functions.
- Detailed, affordable beginner model with extensive features.
This model is being issued in a one-time series for the 200th birthday of Theodor Friedrich Wilhelm Märklin and is limited worldwide to 1,817 pieces.
Features:
- Metal frame and locomotive body.
- DCC decoder
- Digital decoder with up to 9 digitally controlled functions, which can be operated with the 60652 or 60651 Mobile Station. Up to 5 functions, which can be operated with the 6021 Control Unit. Equipped for up to 16 functions with future controllers. The functions present depend on how the locomotive is equipped.
- Built-in sound effects circuit.
- Triple headlights and two red marker lights that change over with the direction of travel.
- Marklin close couplers in standard pocket with pivot point.
- Era 6
|
Control Unit |
Mobile Station |
Mobile Station 2 |
Central Station |
Central Station 3 |
|
| Headlight(s) | · | · | · | · | · |
| Operating Sounds 1 | · | · | · | · | · |
| Electric locomotive op. sounds | · | · | · | · | · |
| Low Pitch Horn | · | · | · | · | · |
| Direct control | · | · | · | · | · |
| Sound of squealing brakes off | · | · | · | · | |
| Headlight(s): Cab2 End | · | · | · | · | |
| High Pitch Horn | · | · | · | · | |
| Headlight(s): Cab1 End | · | · | · | · | |
| Sound of Couplers Engaging | · | · | · | ||
| Operating Sounds 2 | · | · | · | ||
| Letting off Air | · | · | · | ||
| Blower motors | · | · | · | ||
| Conductor's Whistle | · | · | · | ||
| Rail Joints | · | · | · |
