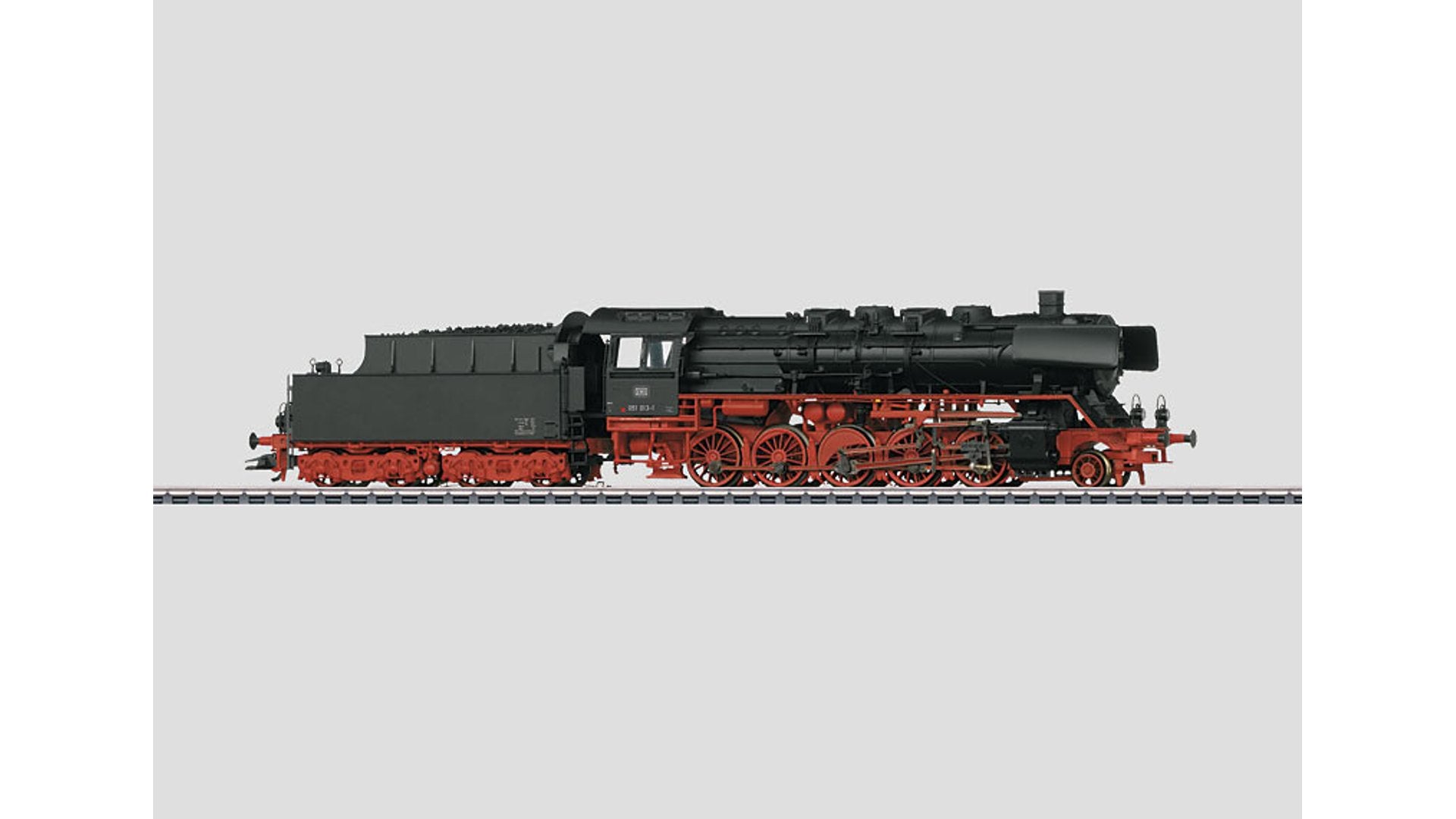

Marklin 37819 Steam Freight Locomotive with a Tender
Model: The locomotive has an mfx digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion. 5 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. The 7226 smoke unit can be installed in the locomotive. The triple headlights change over with the direction of travel. They and the smoke unit that can be installed in the locomotive will work in conventional operation and can be controlled digitally. Maintenance-free warm white LEDs are used for the lighting. There is an adjustable close coupling with a guide mechanism between the locomotive and tender for different curves. There is a close coupler with an NEM pocket and guide mechanism on the front of the locomotive and the rear of the tender. Minimum radius for operation is 360 mm / 14-3/16". Protective sleeves for the piston rods and brake hoses are included as detail parts and can be mounted on the locomotive. Length over the buffers 26.4 cm / 10-3/8".
Find more Marklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
One-time series.
Highlights:
- Especially fine metal construction.
- Partially open bar frame and many separately applied details.
- A variety of operating and sound functions that can be controlled digitally.
Prototype: German Federal Railroad (DB) class 051 steam freight locomotive, with a coal tender as the standard type 2´2´T26 box-style tender in its original form. With Witte smoke deflectors, standard cab, long running boards in the front slanted up to the smoke box, DB Reflex glass lanterns, and inductive magnet on one side. Road number 051 013-1. The locomotive looks as it did around 1969 - 1970.
Digital Functions:
| Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
|
| Headlight(s) | • | • | • | • | • |
| Smoke generator contact | • | • | • | • | • |
| Steam locomotive op. sounds | • | • | • | • | • |
| Locomotive whistle | • | • | • | • | • |
| Direct control | • | • | • | • | • |
| Sound of squealing brakes off | • | • | • | • | |
| Air Pump | • | • | • | • | |
| Whistle for switching maneuver | • | • | • | • | |
| Letting off Steam | • | • | • | • | |
| Bell | • | • | • | ||
| Sound of coal being shoveled | • | • | • | ||
| Grate Shaken | • | • | • | ||
| Injectors | • | • | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Length over the buffers approximately 2.64 cm
- Scale: H0 (1:87)
- Type: Steam Locomotives
Warning
 |
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
