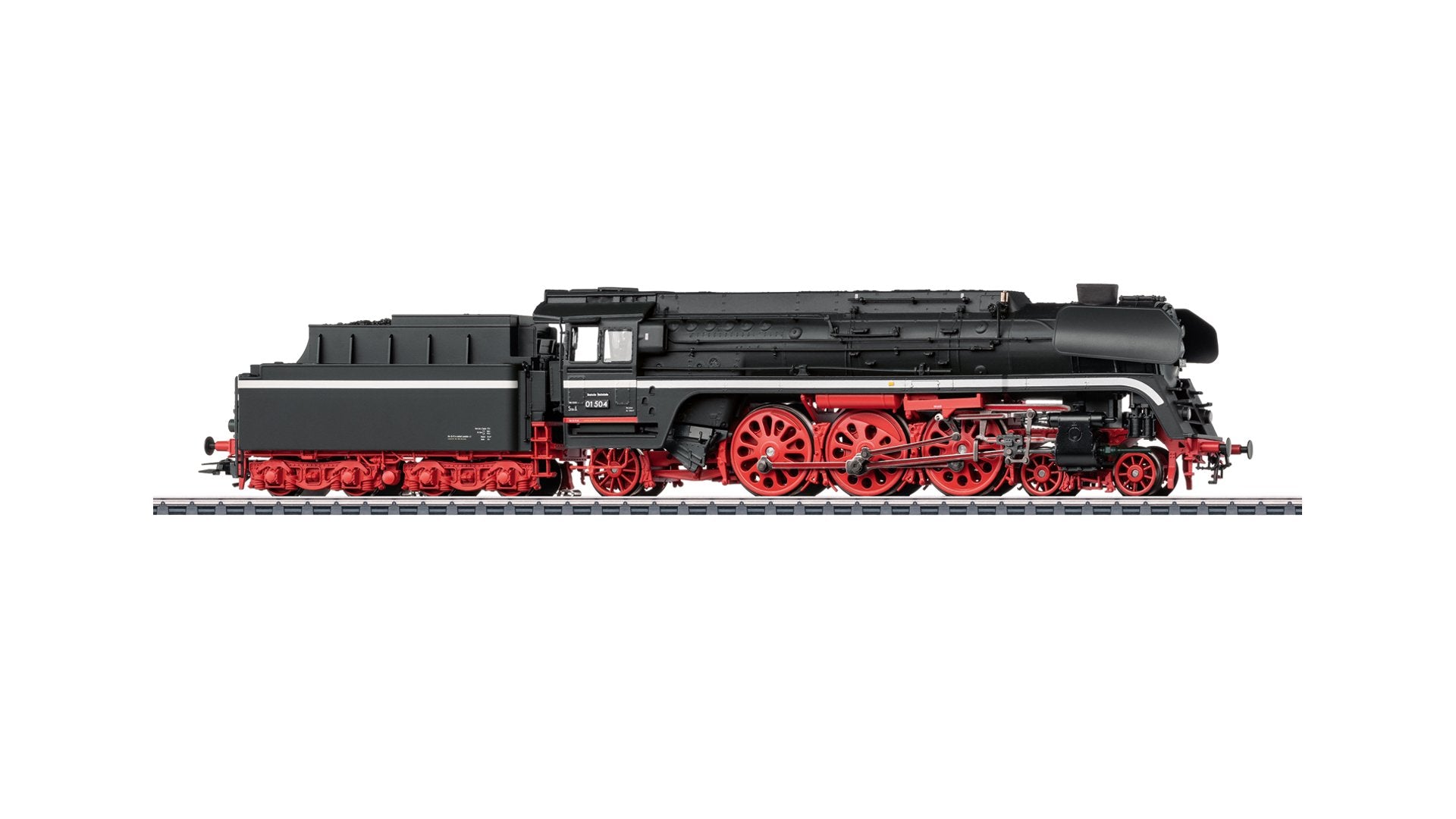

Marklin 38206 Class 01.5 Steam Locomotive
DR Steam Loco 01504,Black,III
Model: The loco has an mfx+ digital decoder and extensive light and sound functions. It also has a controlled high-performance motor with a flywheel, mounted in the boiler. Three axles driven. Traction tires. The locomotive and tender are made mostly of metal. Built-in smoke unit as standard. The triple headlights change ends with the direction of travel, will operate conventionally, and can be controlled digitally. The cab lighting is also digitally controllable. Lighting with maintenance-free warm white LEDs. A buffer capacitor is fitted. Close coupling with a guide mechanism between the loco and tender. Tender has a close coupler with a guide mechanism and NEM pocket. The minimum radius for operation is 360 mm / 14-3/16". Protective piston sleeves and brake hoses are supplied. Length over buffers 28.2 cm / 11-3/32".
A DC version of this model is available in the Trix H0 range as item 25906.
Find more Märklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
Highlights:
- Tooling variant with side cladding along the running boards.
- Typical black basic paint scheme with red running gear for steam locos.
- Intricate model, constructed mostly of metal.
- Continuous dome streamlining.
- Pierced bar frames and many separately applied details.
- Built-in smoke unit as standard.
- World of Operation mfx+ decoder with extensive operating and sound functions.
- A buffer capacitor to bridge short unpowered sections of track is fitted.
Prototype: Class 01.5 express steam locomotive, with type 2´2´T34 coal tender. GDR German State Railroad (DR/GDR) "Reko" version. The model has a black paint scheme with white decorative stripes and red running gear. The model is equipped with Boxpok wheels, Witte smoke deflectors specially designed for the class 01.5, continuous dome streamlining, and side cladding along the running boards. Loco road number 01 504. The loco looks as it did during the 1960s.
Digital Functions:
| Â | Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
| Headlight(s) | • | • | • | • | • |
| Smoke generator | • | • | • | • | • |
| Steam locomotive op. sounds | • | • | • | • | • |
| Locomotive whistle | • | • | • | • | • |
| Direct control | • | • | • | • | • |
| Sound of squealing brakes off |  | • | • | • | • |
| Engineer’s cab lighting |  | • | • | • | • |
| Whistle for switching maneuver |  | • | • | • | • |
| Safety Valve |  | • | • | • | • |
| Letting off Steam |  |  | • | • | • |
| Tipping grate |  |  | • | • | • |
| Air Pump |  |  | • | • | • |
| Water Pump |  |  | • | • | • |
| Injectors |  |  | • | • | • |
| Sanding |  |  | • | • | • |
| Replenishing coal |  |  | • | • | • |
| Replenishing water |  |  |  |  | • |
| Replenishing sand |  |  |  |  | • |
| "Switcher Double ""A"" Light" |  |  |  |  | • |
| Switching range + switching light |  |  |  |  | • |
| Generator Sounds |  |  |  |  | • |
| Operating sounds |  |  |  |  | • |
| Rail Joints |  |  |  |  | • |
| Sound of uncoupling |  |  |  |  | • |
| Sound of Couplers Engaging |  |  |  |  | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Length over the buffers approximately 28.2 cm / 11-3/32"
- Scale: H0 (1:87)
- Type: Steam Locomotives
