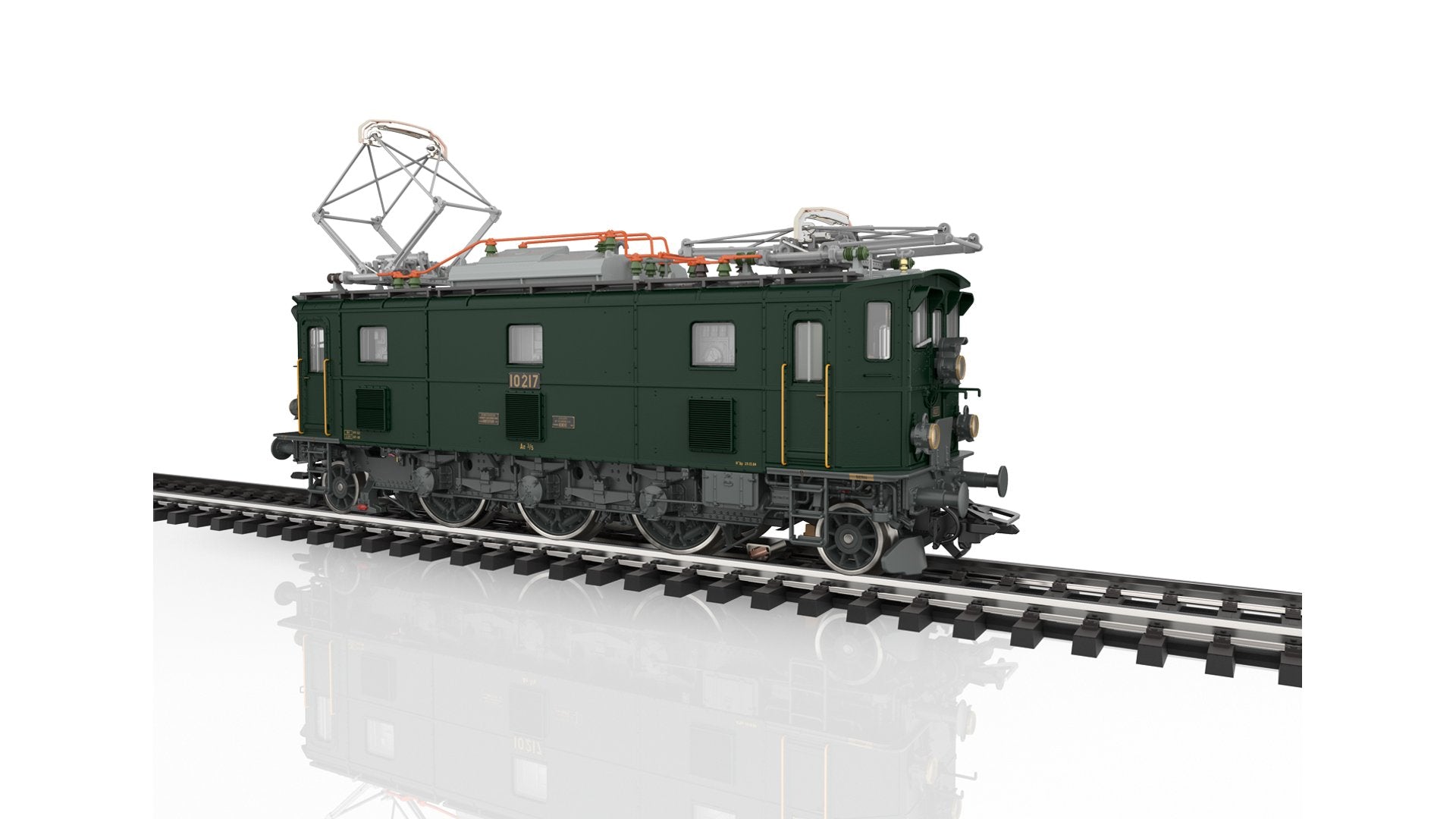

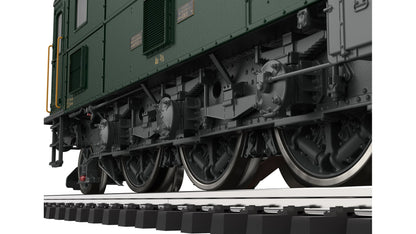

Marklin 38350 Class Ae 3/5 electric loco
SBB Ae 3/5 E-Loco, VI
Model: With mfx+ digital decoder and extensive operating and sound functions. Controlled high-performance motor with a flywheel. One axle driven. Traction tires. The triple headlights and one white marker light (Swiss headlight/marker light code) change over with the direction of travel, will work in conventional operation, and can be controlled digitally. When the locomotive is running “light,” the lighting can be changed to one red marker light. The oncoming train light can be separately controlled in digital operation. The headlights at no. 1 and no. 2 ends can be turned off separately in digital operation. There is a double “A” light function. There is also lighting for the cab and control desk, a flashing effect for the relay, and machine room lighting, each of which can be controlled separately in digital operation. Maintenance-free warm white and red LEDs are used for the lighting. A buffer capacitor is included. The locomotive features highly detailed metal construction with many separately applied details. The cabs and machine room have interior details. The loco features detailed roof equipment with roof conductors, insulators, and roof catwalks, as well as scissor pantographs. The minimum radius for operation is 360 mm / 14-3/16". Brake hoses and imitation screw couplers are included. Length over buffers approximately 12.8 cm / 5-1/32".
You can find matching passenger cars in the Märklin H0 range as items 43363, 43373, and 43383.
You can find a DC version of this model in the Trix H0 range as item 25350.
Find more Märklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
Highlights:
- Completely new tooling.
- Highly detailed metal construction.
- World of Operation mfx+ decoder with extensive light and sound functions.
- The lighting for the cab, control desk, and machine room is digitally controllable.
- Flashes from the relay are digitally controllable.
- With buffer capacitor to bridge short unpowered sections of track.
- Buffer height conforms to NEM.
Prototype: for the wonderful new Märklin model of this loco type, which also possesses truly rustic charm in 1:87 scale.
Digital Functions:
| Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
|
| Headlight(s) | • | • | • | • | • |
| Marker light(s) | • | • | • | • | • |
| Electric locomotive op. sounds | • | • | • | • | • |
| Locomotive whistle | • | • | • | • | • |
| Engine room lighting | • | • | • | • | • |
| Direct control | • | • | • | • | |
| Headlights locomotive end 2 off | • | • | • | • | |
| Whistle for switching maneuver | • | • | • | • | |
| Headlights locomotive end 1 off | • | • | • | • | |
| Sound of squealing brakes off | • | • | • | ||
| Engineer’s cab lighting | • | • | • | ||
| Engineer’s cab lighting | • | • | • | ||
| Blower motors | • | • | • | ||
| Letting off Air | • | • | • | ||
| Light Function – Swiss oncoming train light | • | • | • | ||
| Control desk lighting | • | ||||
| Compressor | • | ||||
| Conductor's Whistle | • | ||||
| Sanding | • | ||||
| Switching maneuver | • | ||||
| Operating sounds | • | ||||
| Sound of Couplers Engaging | • | ||||
| Sound of uncoupling | • | ||||
| Opening cab door | • | ||||
| Pantograph Sounds | • | ||||
| Rail Joints | • | ||||
| Buffer to buffer | • | ||||
| Light Function | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Length over the buffers approximately 12.8 cm / 5-1/32"
- Scale: H0 (1:87)
- Type: Electric Locomotives
Warning
|
|
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
