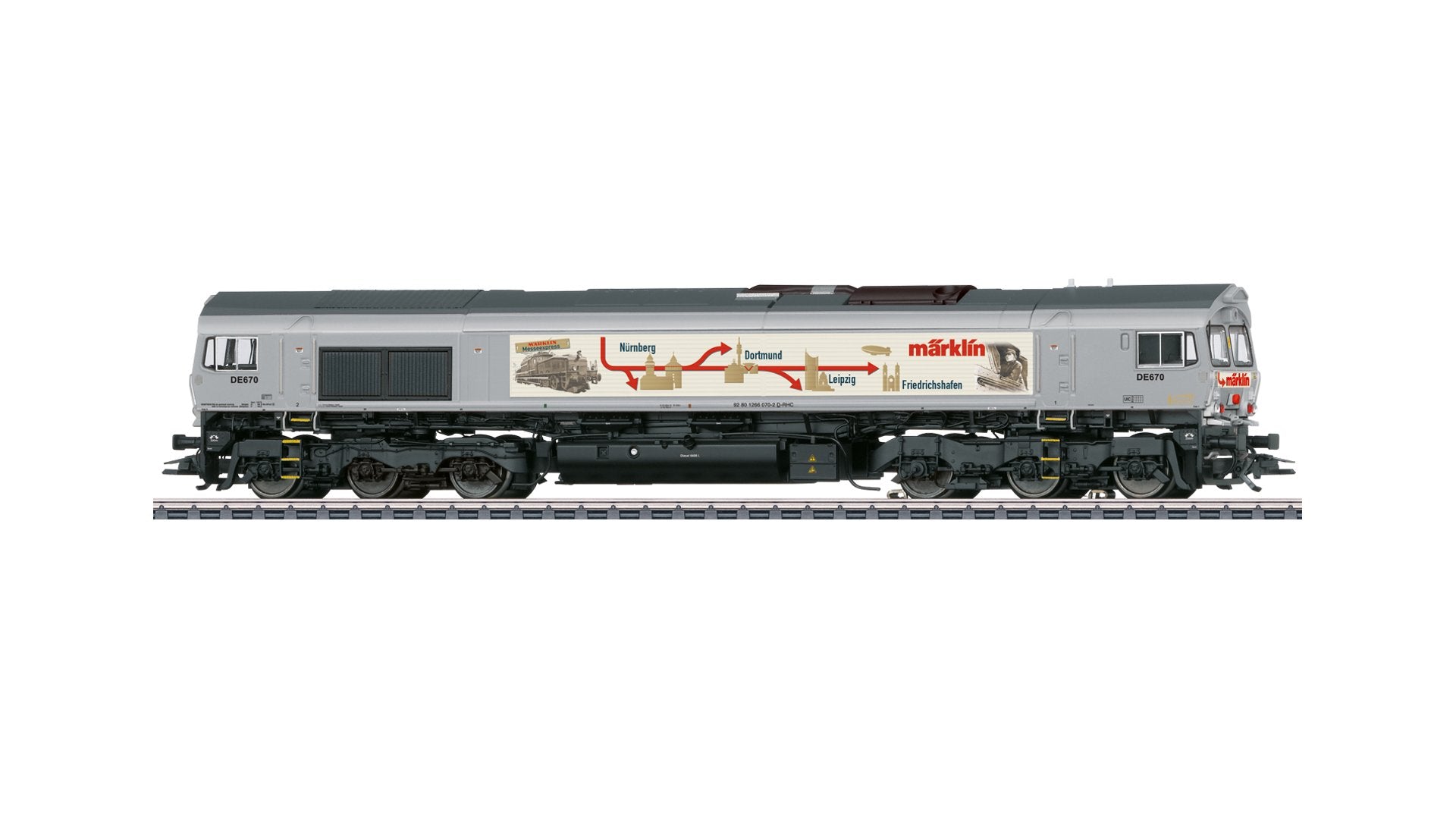

Märklin 39071 Class 66 Diesel Locomotive
Model: The locomotive has an mfx+ digital decoder and extensive sound and light functions. It also has a controlled, high-performance motor with a flywheel, centrally mounted. Four axles are powered by cardan shafts. Traction tires are fitted. Triple headlights and dual red marker lights change end with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights at no. 1 and no. 2 ends can be turned off separately in digital operation. When the headlights are off at both ends, the double “A” light function is on at both ends. The cab lighting can be controlled digitally. The control desk lighting can be controlled digitally. Maintenance-free, warm-white, and red LEDs are used for the lighting. The model has a factory-fitted smoke unit. The model has many separately applied details. The buffer beams are detailed. Brake hoses to be attached separately are included. The length over the buffers is approximately 24.7 cm / 9-3/4".
Find more Märklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
Highlights:
- Special edition exhibition locomotive 2026, exclusively presented at the “Intermodellbau” trade fair in Dortmund.
- The cab lighting is digitally controllable.
- The control desk lighting can be controlled digitally.
- Factory-fitted smoke generator with dynamic smoke exhaust.
- mfx+ digital decoder.
Prototype: Diesel-electric freight locomotive JT42CWR, better known as the class 66.
Digital Functions:
| Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
|
| Headlight(s) | • | • | • | • | • |
| Smoke generator | • | • | • | • | • |
| Diesel locomotive op. sounds | • | • | • | • | • |
| High Pitch Horn | • | • | • | • | • |
| Direct control | • | • | • | • | • |
| Sound of squealing brakes off | • | • | • | • | |
| Headlight(s): Cab2 End | • | • | • | • | |
| Low Pitch Horn | • | • | • | • | |
| Headlight(s): Cab1 End | • | • | • | • | |
| Engineer’s cab lighting | • | • | • | ||
| Blower motors | • | • | • | ||
| Control desk lighting | • | • | • | ||
| Compressor | • | • | • | ||
| Letting off Air | • | • | • | ||
| Switching maneuver | • | • | • | ||
| "Switcher Double ""A"" Light" | • | ||||
| Sanding | • | ||||
| Low Pitch Horn | • | ||||
| High Pitch Horn | • | ||||
| Switching range + switching light | • | ||||
| Sound of Couplers Engaging | • | ||||
| Sound of uncoupling | • | ||||
| Replenishing diesel fuel | • | ||||
| SIFA warning sound | • | ||||
| Warning announcement | • | ||||
| Opening cab door | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Length over the buffers approximately 2.47 cm
- Scale: H0 (1:87)
- Type: Diesel Locomotives
Warning
|
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
