Marklin 39209 Class 01-5 Steam Locomotive

Marklin 39209 Class 01.5 Steam Locomotive

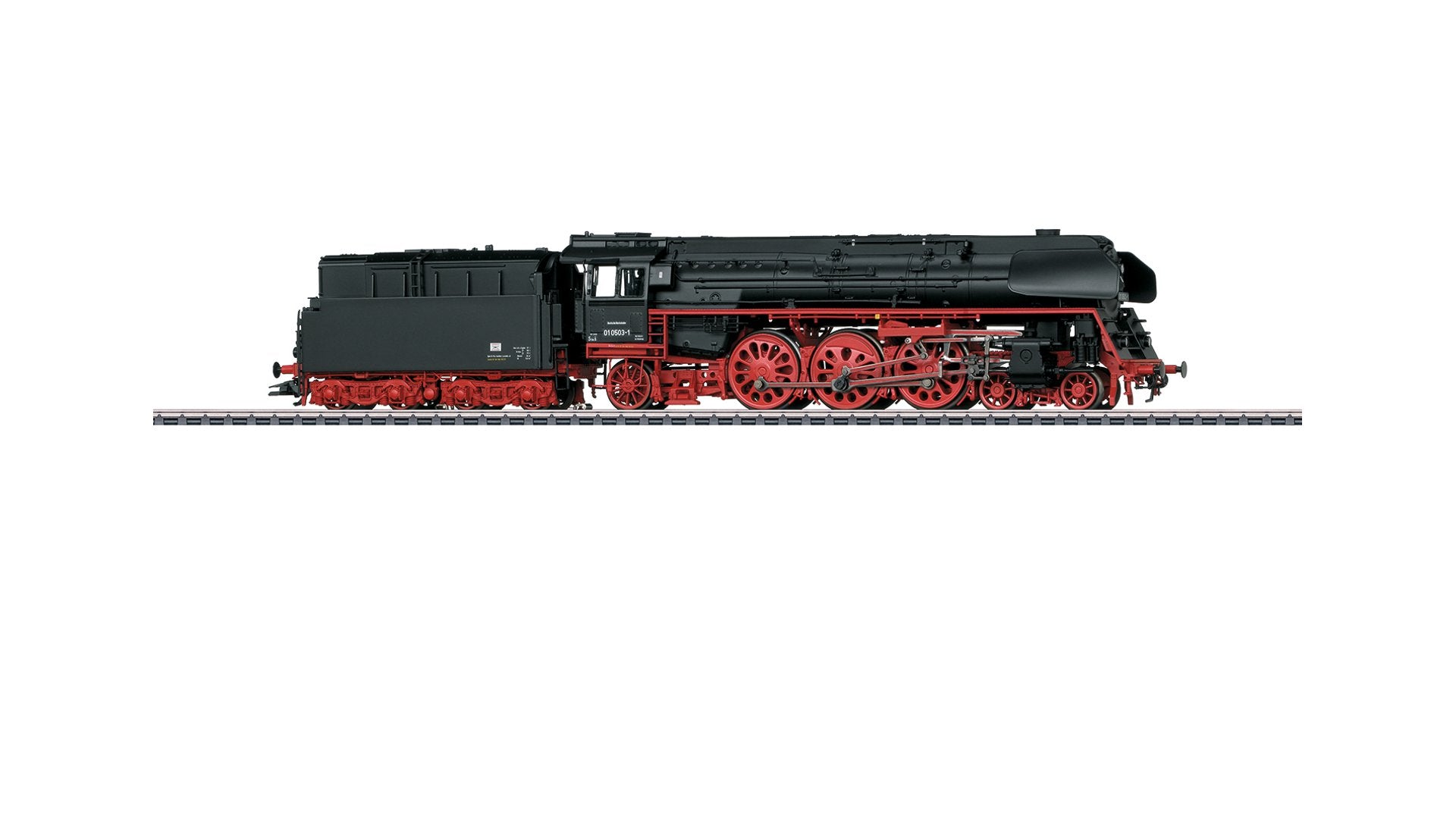

Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 3 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. The 7226 smoke unit can be installed in the locomotive. The triple headlights change over with the direction of travel. They and the smoke unit that can be installed in the locomotive will work in conventional operation and can be controlled digitally. The cab lights can also be controlled digitally. Maintenance-free warm white LEDs are used for the lighting. There is a close coupling with a guide mechanism between the locomotive and tender. There is a close coupler with an NEM pocket and a guide mechanism on the tender. The minimum radius for operation is 360 mm / 14-3/16". Protective sleeves for the piston rods and brake hoses are included as detail parts. Length over the buffers 28.2 cm / 11-1/8".

A set of express train passenger cars to go with the class 01.5 steam locomotive can be found in the Marklin H0 assortment under item number 42982.

This model can be found in a DC version in the Trix H0 assortment under item number 22909.

Find more Marklin explanation videos on our YouTube Channel

Spare parts for our articles can be found here in our spare parts search.

With some luck it was also an elegant steam locomotive from the class 01.5, the swan song of steam locomotive reconstructions by the German State Railroad (DR) of the GDR. A total of 35 units of the class 01 underwent extensive reconstruction at the beginning of the Sixties. Initially, only the installation of a new welded boiler was planned, but the condition of the locomotives selected finally forced extensive conversions that in many parts made new locomotives out of the units. The maintenance facility in Halberstadt delivered the "Reko" boilers, and they were installed at the maintenance facility in Meiningen. During the rebuilding program the boiler was placed higher, continuous dome streamlining adorned the top of the boiler, and the cabs were replaced by a new welded version. The locomotives rebuilt in this way had hardly anything in common with their original look. After the rebuilding program, these units were therefore given the new class designation of 01.5. Beginning with road number 01 519 (rebuilt in 1964) the locomotives were equipped with oil firing, and the remaining units were converted accordingly in 1965/66. Only six locomotives kept grate type firing. Ten locomotives were equipped at times with Boxpok wheels.

Highlights:

• Especially intricate metal construction.
• Striking Boxpok wheels and continuous dome streamlining.
• Partially open bar frame and many separately applied details.
• "World of Operation" mfx+ decoder and extensive operation and sound functions included.

Prototype: Class 01.5 steam express locomotive with an oil tender. GDR German State Railroad (DR/GDR) "Reko" version. Includes Boxpok wheels, type 2´2´T34 standard design tender as an oil tender. Special design Witte smoke deflectors for the class 01.5, continuous dome streamlining, and inductive magnet on one side. Road number 01 0503-1. The locomotive looks as it did in the mid-Seventies.

Digital Functions:

* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55

Specifications:

• Length over the buffers approximately 2.82 cm
• Scale: H0 (1:87)
• Type: Steam Locomotives

Warning

ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard.
