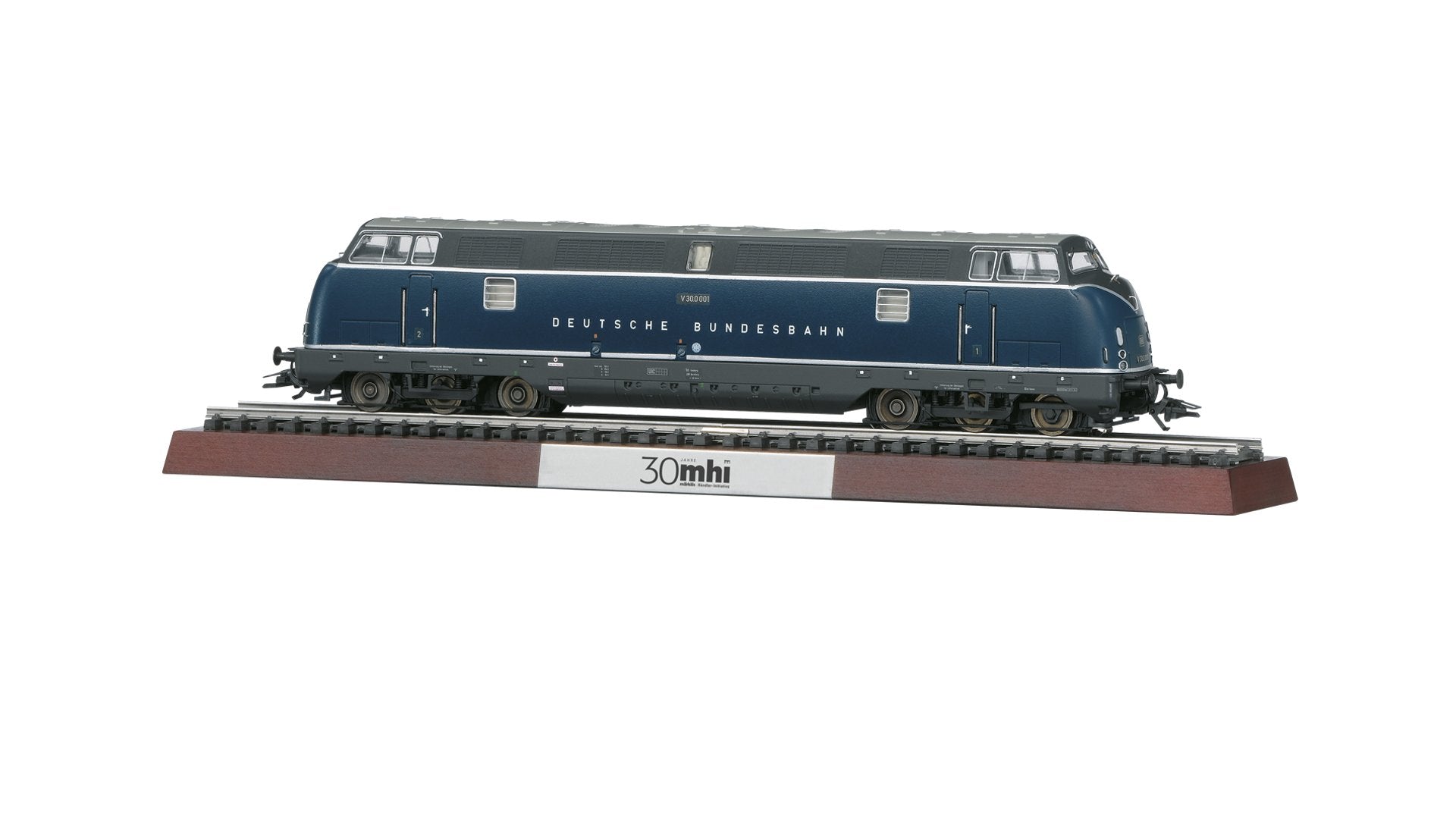

Marklin 39306 Class V 30.0 Diesel Locomotive
Model: The locomotive has an mfx+ digital decoder and extensive sound and light functions. It also has controlled high-efficiency propulsion with a flywheel, centrally mounted. The outer axles of each truck powered through cardan shafts. Traction tires. The triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights at locomotive end 2 and 1 can each be turned off separately. The locomotive has the double "A" light function. There is also cab lighting and engine room lighting and they can each be controlled separately in digital operation. Maintenance-free, warm white and red LEDs are used for the lighting. The locomotive has metal grab irons on the sides and ends. It also has detailed buffer beams with separately applied brake hoses. The couplers can be replaced with closed end skirts and imitation prototype couplers. A presentation base and track are included. Length over the buffers 23.3 cm / 9-3/16".
Find more Marklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
One-time series as a special version for the 15th MHI membership meeting on June 20, 2020 in Radebeul.
Highlights:
- Presentation base and track are included.
- World of Operation mfx+ digital decoder with extensive sound and light functions.
Prototype: German Federal Railroad (DB) class V 30.0 heavy diesel locomotive. Fictitious steel blue basic paint scheme. Locomotive road number V 30.0 001. The locomotive looks as it did in the Sixties.
Digital Functions:
| Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
|
| Headlight(s) | • | • | • | • | • |
| Light Function | • | • | • | • | • |
| Diesel locomotive op. sounds | • | • | • | • | • |
| Horn | • | • | • | • | • |
| Direct control | • | • | • | • | • |
| Sound of squealing brakes off | • | • | • | • | |
| Headlight(s): Cab2 End | • | • | • | • | |
| Whistle for switching maneuver | • | • | • | • | |
| Headlight(s): Cab1 End | • | • | • | • | |
| Brake Compressor | • | • | • | ||
| Letting off Air | • | • | • | ||
| Engineer’s cab lighting | • | • | • | ||
| Engineer’s cab lighting | • | • | • | ||
| Sanding | • | • | • | ||
| Replenishing fuel | • | • | • | ||
| Conductor's Whistle | • | ||||
| Doors Closing | • | ||||
| Blower motors | • | ||||
| Surrounding sounds | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Length over the buffers approximately 2.33 cm
- Scale: H0 (1:87)
- Type: Diesel Locomotives
Warning
|
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
