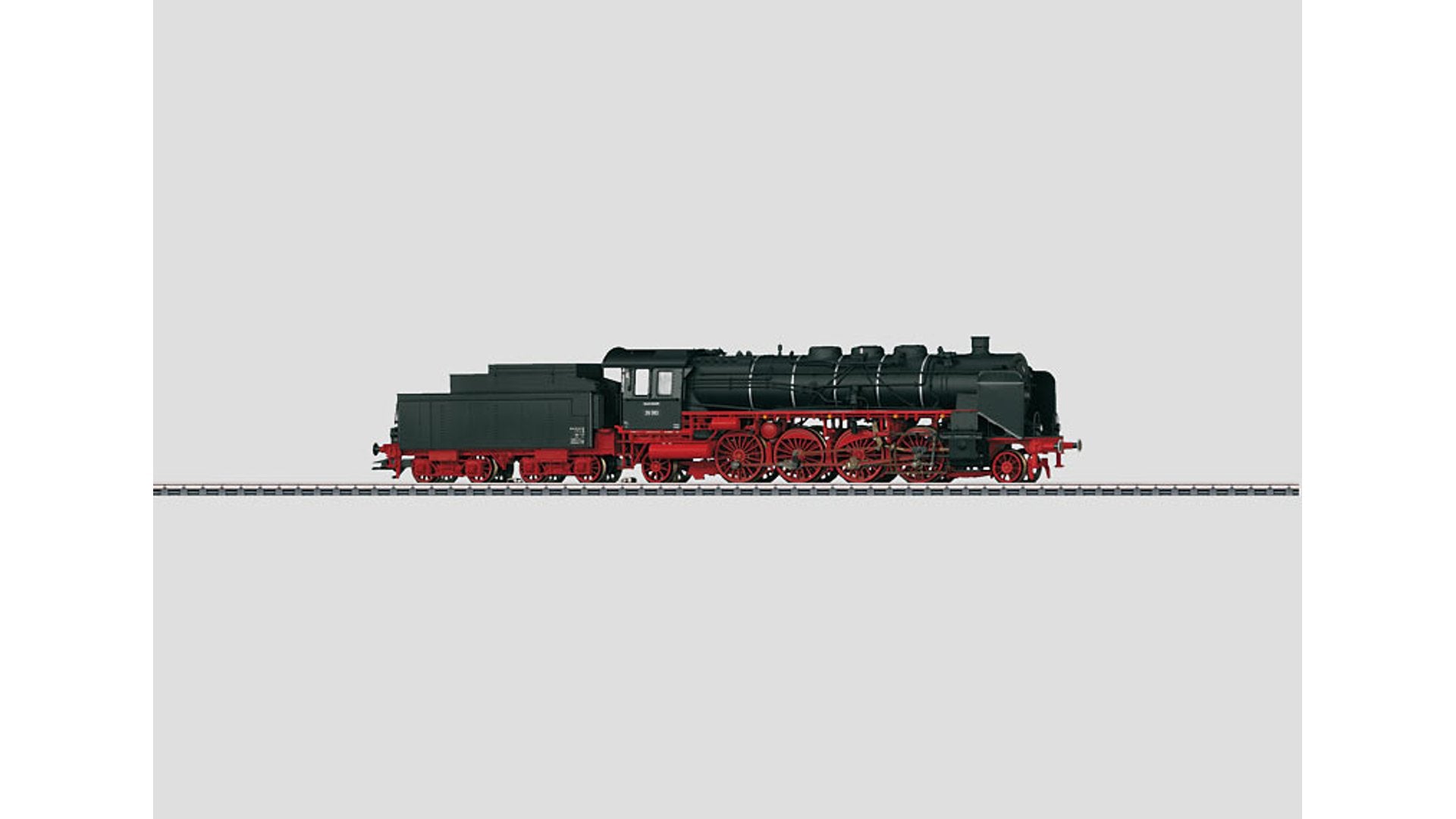

Marklin 39393 Passenger Locomotive with a Tender.
Model: The locomotive has an mfx digital decoder and extensive sound functions. It also has controlled Softdrive Sine high-efficiency propulsion, and a compact design, maintenance-free can motor. 4 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. A 72270 smoke generator can be installed in the locomotive. The dual headlights change over with the direction of travel. The headlights and the smoke generator, which can be installed in the locomotive, will work in conventional operation and can be controlled digitally. The headlights are maintenance-free, warm white LEDs. There is a close coupling with a guide mechanism between the locomotive and the tender and it can be adjusted for curves. The back of the tender has a close coupler with a guide mechanism and an NEM coupler pocket. Minimum radius for operation is 360 mm / 14-3/16". Piston rod protection sleeves are included. Length over the buffers 26.3 cm / 10-3/8".
Express train passenger cars to go with this locomotive, the so-called "Hechtwagen / Pike Cars", are being offered in the Marklin assortment under item numbers 42230, 42250, 42251, and 42260 and in the Trix assortment under item numbers 23383, 23384, 23385, and 23387.
Find more Marklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
One-time series.
Highlights:
- New tooling for the Prussian type 2´2´T 31,5 box-style tender.
- Polished metal version of the boiler bands.
- Tender with additional wooden boards for the coal bunker.
- mfx decoder with a variety of operating and sound functions, can be controlled digitally.
Prototype: German Federal Railroad (DB) class 39.0-2 passenger steam locomotive. With short Wagner smoke deflectors and a Prussian type 2´2´T 31,5 tender. Built starting in 1922 as the Prussian State Railways class P 10. Version with polished metal boiler bands. Tender with additional wooden boards for the coal bunker. The locomotive looks as it did around 1955.
Digital Functions:
| Â | Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
| Headlight(s) | • | • | • | • | • |
| Smoke generator contact | • | • | • | • | • |
| Steam locomotive op. sounds | • | • | • | • | • |
| Locomotive whistle | • | • | • | • | • |
| Direct control | • | • | • | • | • |
| Air Pump |  | • | • | • | • |
| Flickering Light in Fire Box |  | • | • | • | • |
| Whistle for switching maneuver |  | • | • | • | • |
| Letting off Steam |  | • | • | • | • |
| Sound of squealing brakes off |  |  | • | • | • |
| Sound of coal being shoveled |  |  | • | • | • |
| Grate Shaken |  |  | • | • | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Length over the buffers approximately 2.63 cm
- Scale: H0 (1:87)
- Type: Steam Locomotives
Warning
 |
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
