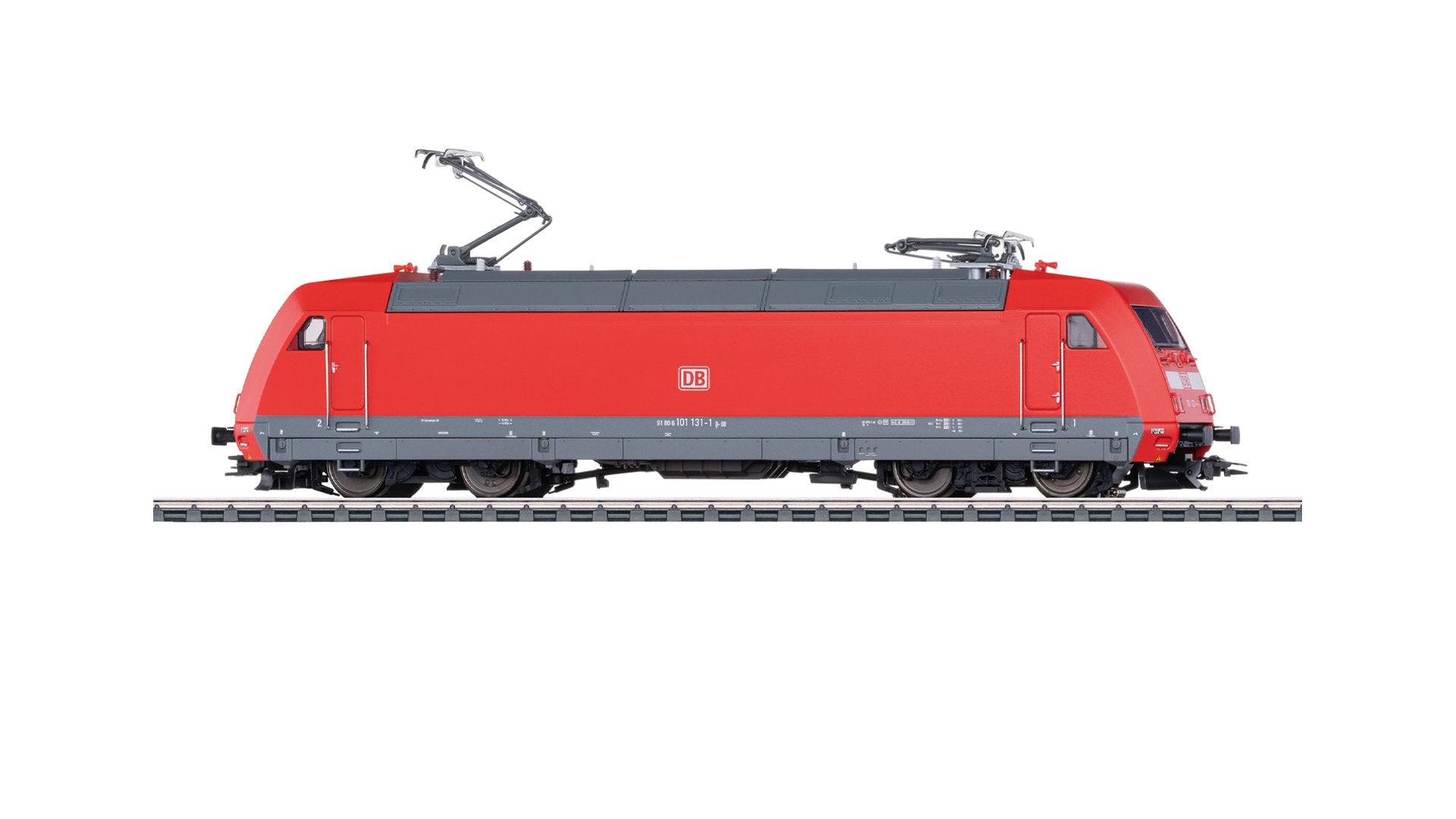

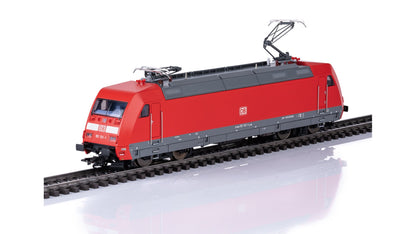

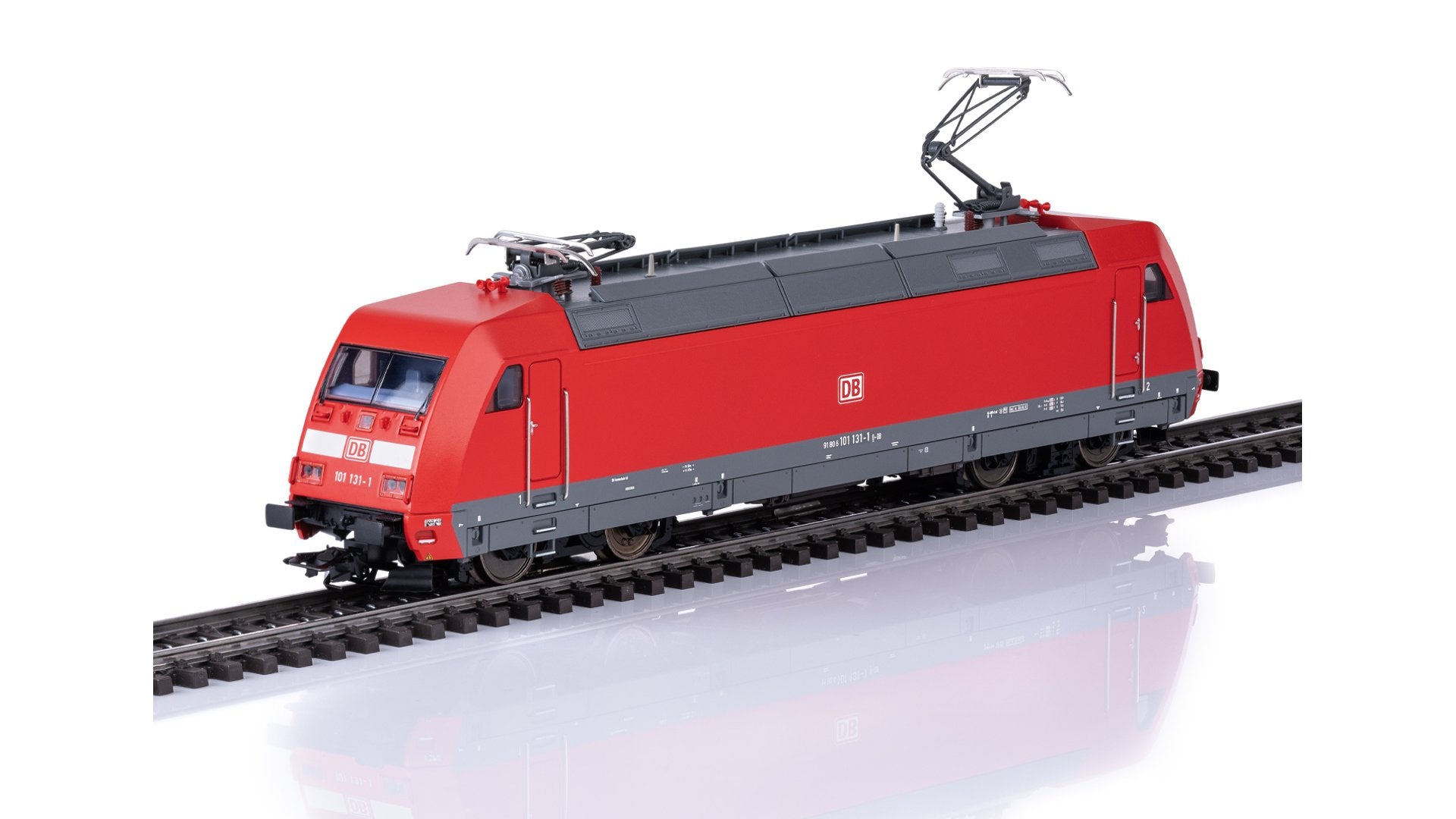

Marklin 39478 Class 101 Electric Locomotive
DB AG E-Loco 101,Tr. Red,VI
Model: The loco has an mfx+ digital decoder and extensive sound functions. It also has a controlled, high-performance motor with a flywheel, centrally mounted. 4 axles powered through cardan shafts. Traction tires. Triple headlights and dual red marker lights change end with the direction of travel; work conventionally, and are digitally controllable. The long-distance headlights and cab lighting can be controlled separately in digital operation. The headlights at no. 1 and no. 2 ends can be turned off separately in digital operation. The loco has the “double A” light function. Maintenance-free warm white and red LEDs are used for the lighting. A 2-pole coupling fitted into the NEM pocket at loco end 2 serves as an electrical connection to car 1 from the ICE express train passenger car set, item 42933. A normal close coupler head is fitted into the NEM pocket at loco end 1. Length over buffers 21.9 cm / 8-5/8".
Find more Märklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
Highlights:
- Centrally mounted motor, all 4 axles driven.
- The engineer’s cab lighting and long-distance headlight are digitally controllable.
- World of Operation mfx+ decoder with extensive light and sound functions.
- Different loco road number than in the Metropolitan train set, item 26931.
- Loco end 2 has a 2-pole current-conducting coupler as a connection to the ICE express train passenger car set, item 42930.
Prototype: German Railroad (DB AG) class 101 express locomotive. Painted traffic red as a traction loco for the ICE express train passenger cars that were formerly Metropolitan passenger cars (MET). Locomotive road number 101 131-1. The loco looks as it did around 2015.
Digital Functions:
| Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
|
| Headlight(s) | • | • | • | • | • |
| Long distance headlights | • | • | • | • | • |
| Electric locomotive op. sounds | • | • | • | • | • |
| Horn | • | • | • | • | • |
| Engineer’s cab lighting | • | • | • | • | |
| Headlight(s): Cab2 End | • | • | • | • | |
| High Pitch Horn | • | • | • | • | |
| Headlight(s): Cab1 End | • | • | • | • | |
| Sound of squealing brakes off | • | • | • | ||
| Station Announcements | • | • | • | ||
| Conductor's Whistle | • | • | • | ||
| Blower motors | • | • | • | ||
| Compressor | • | • | • | ||
| Direct control | • | • | • | ||
| Pantograph Sounds | • | ||||
| Train announcement | • | ||||
| Train announcement | • | ||||
| SIFA warning sound | • | ||||
| Sound of Couplers Engaging | • | ||||
| Sanding | • | ||||
| Switching maneuver | • | ||||
| Switching range + switching light | • | ||||
| Long distance headlights | • | ||||
| Letting off Air | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Length over the buffers approximately 21.9 cm / 8-5/8"
- Scale: H0 (1:87)
- Type: Electric Locomotives
Warning
|
|
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
