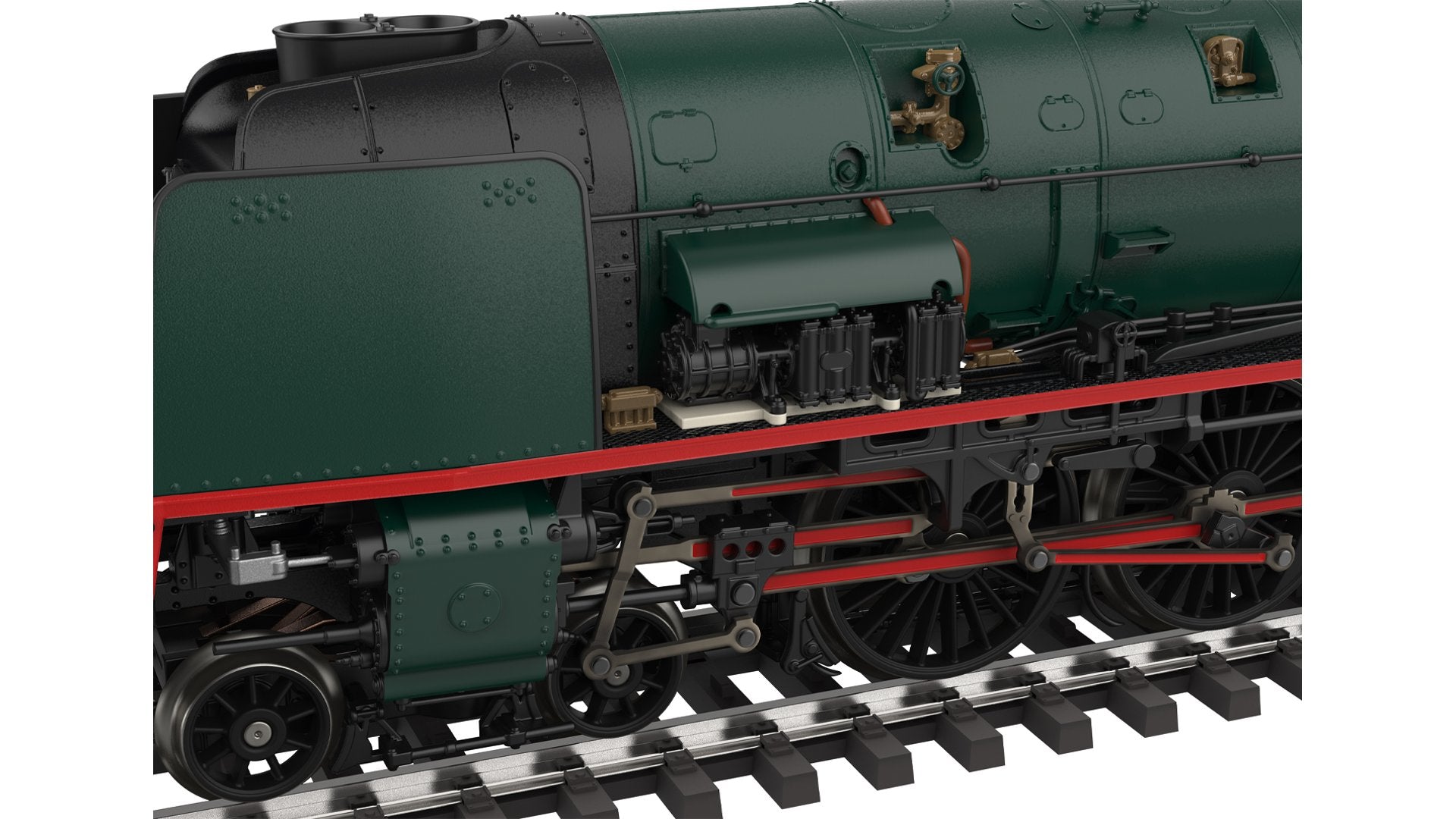

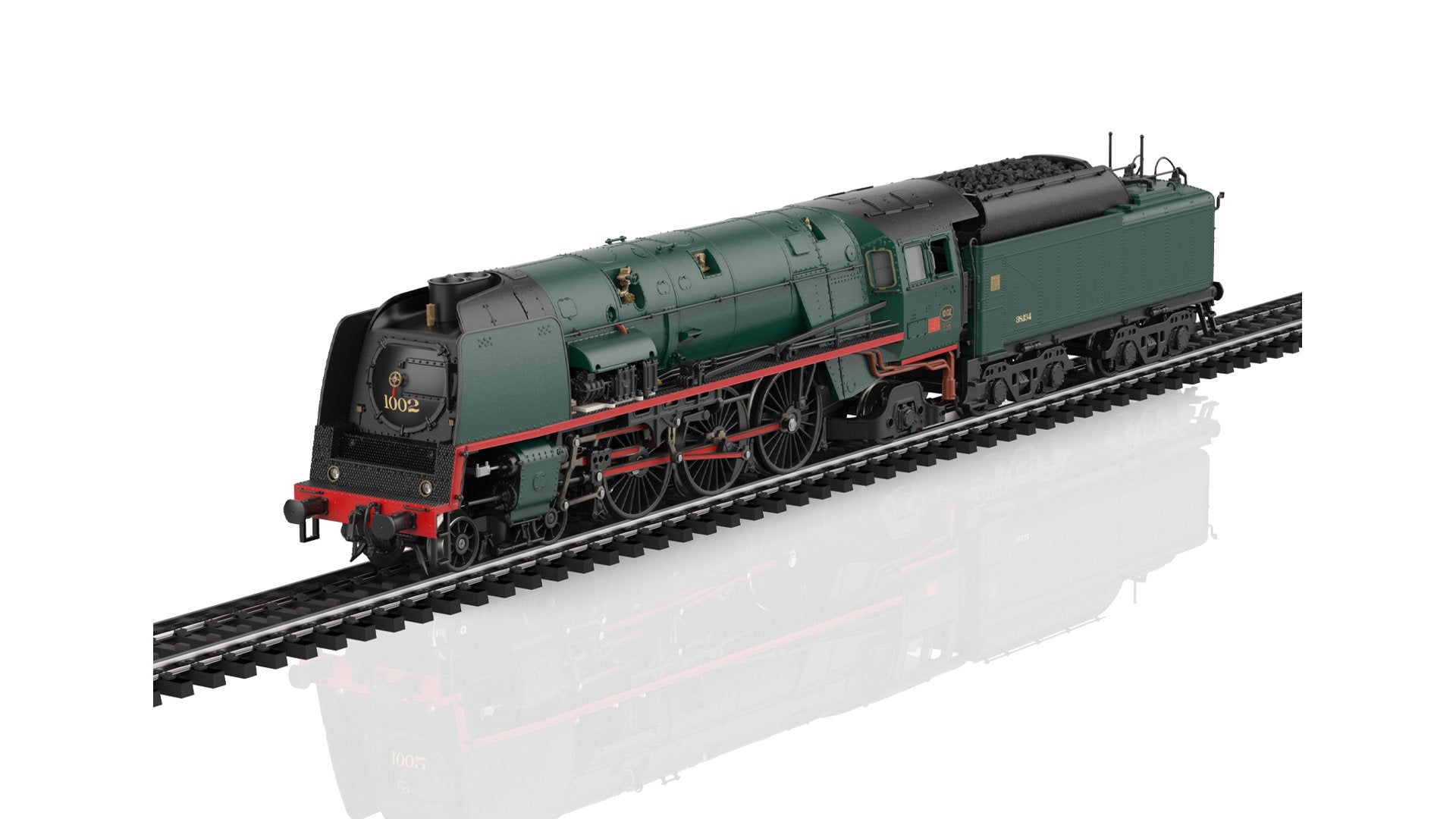

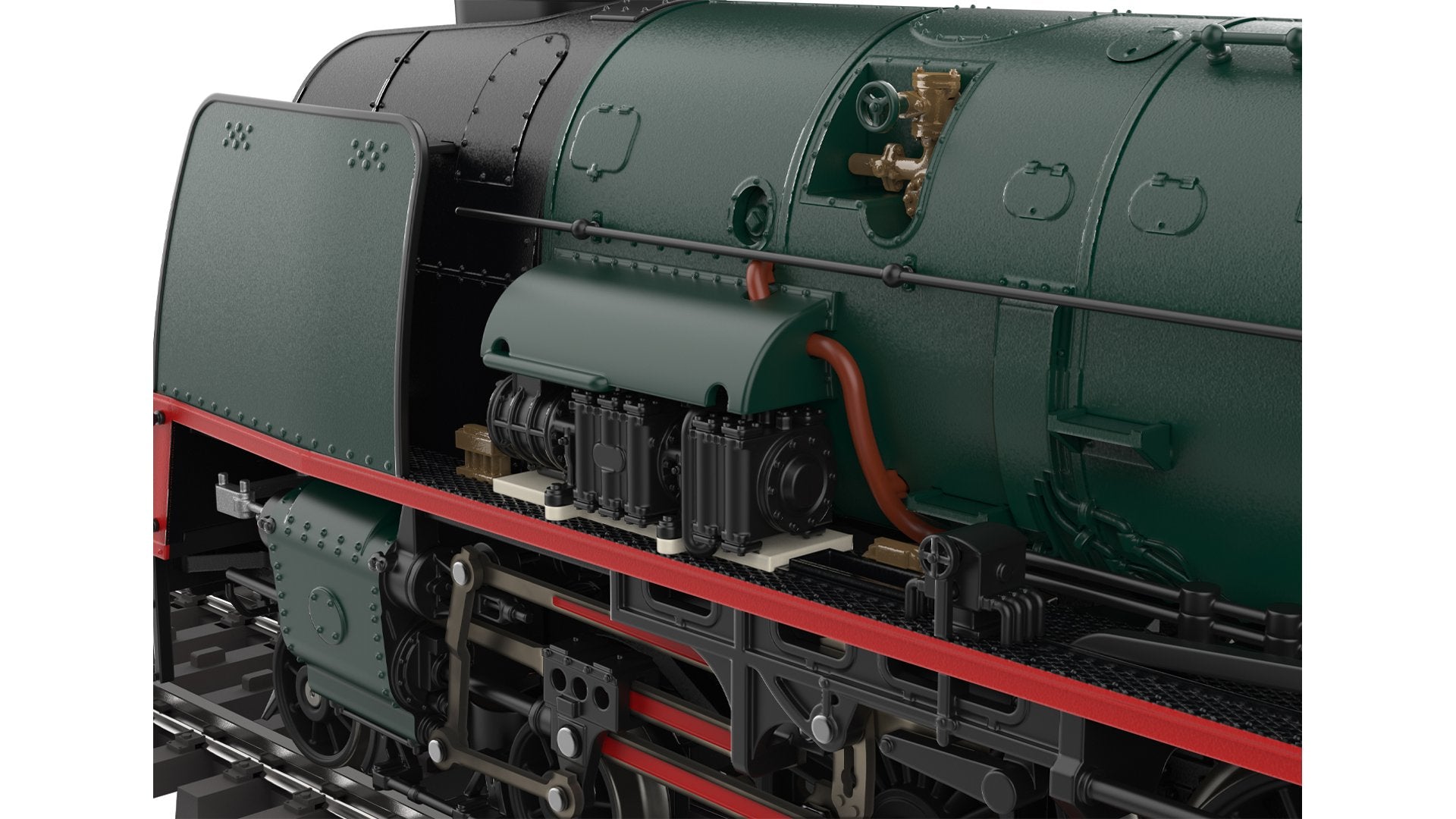

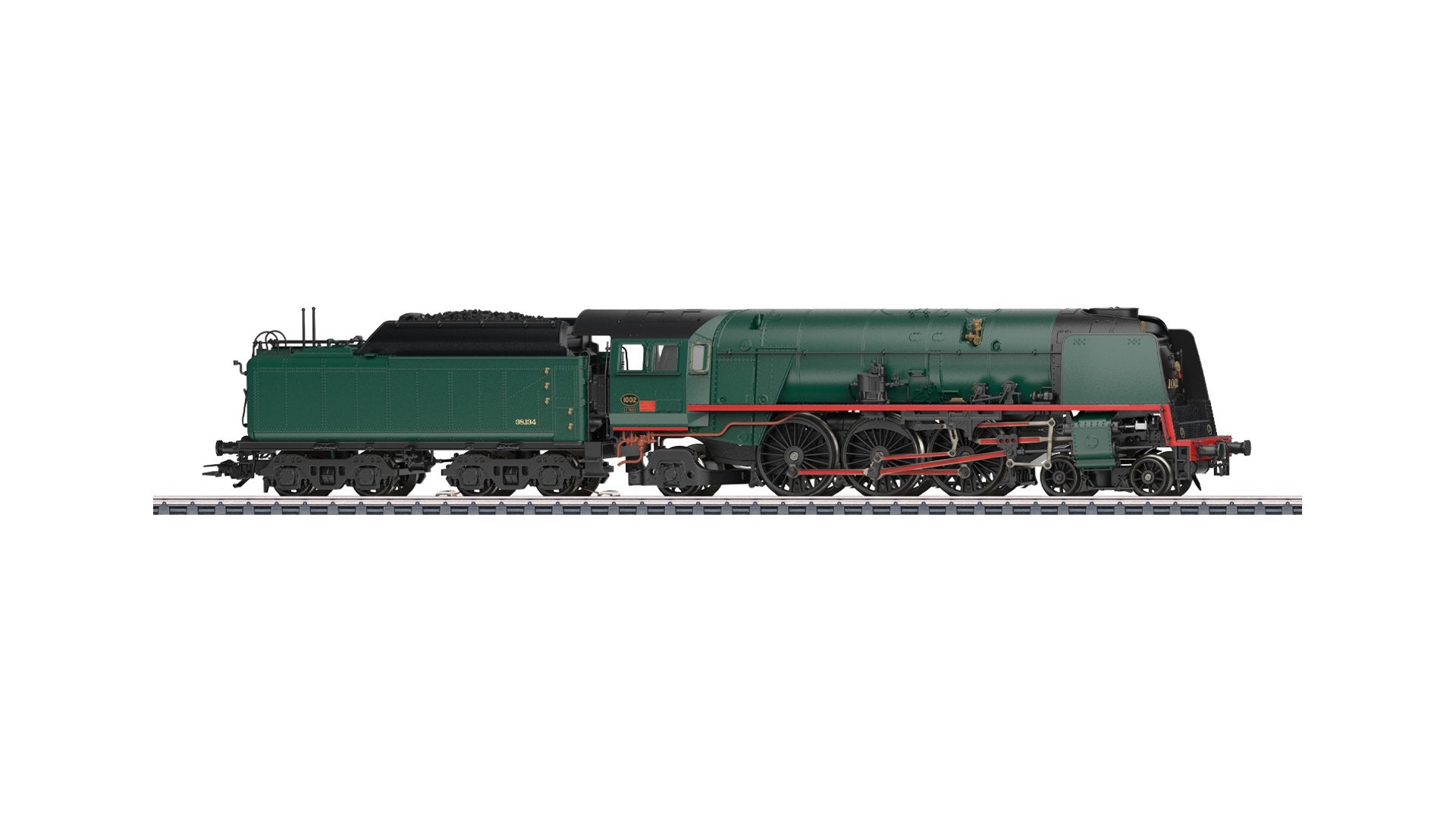

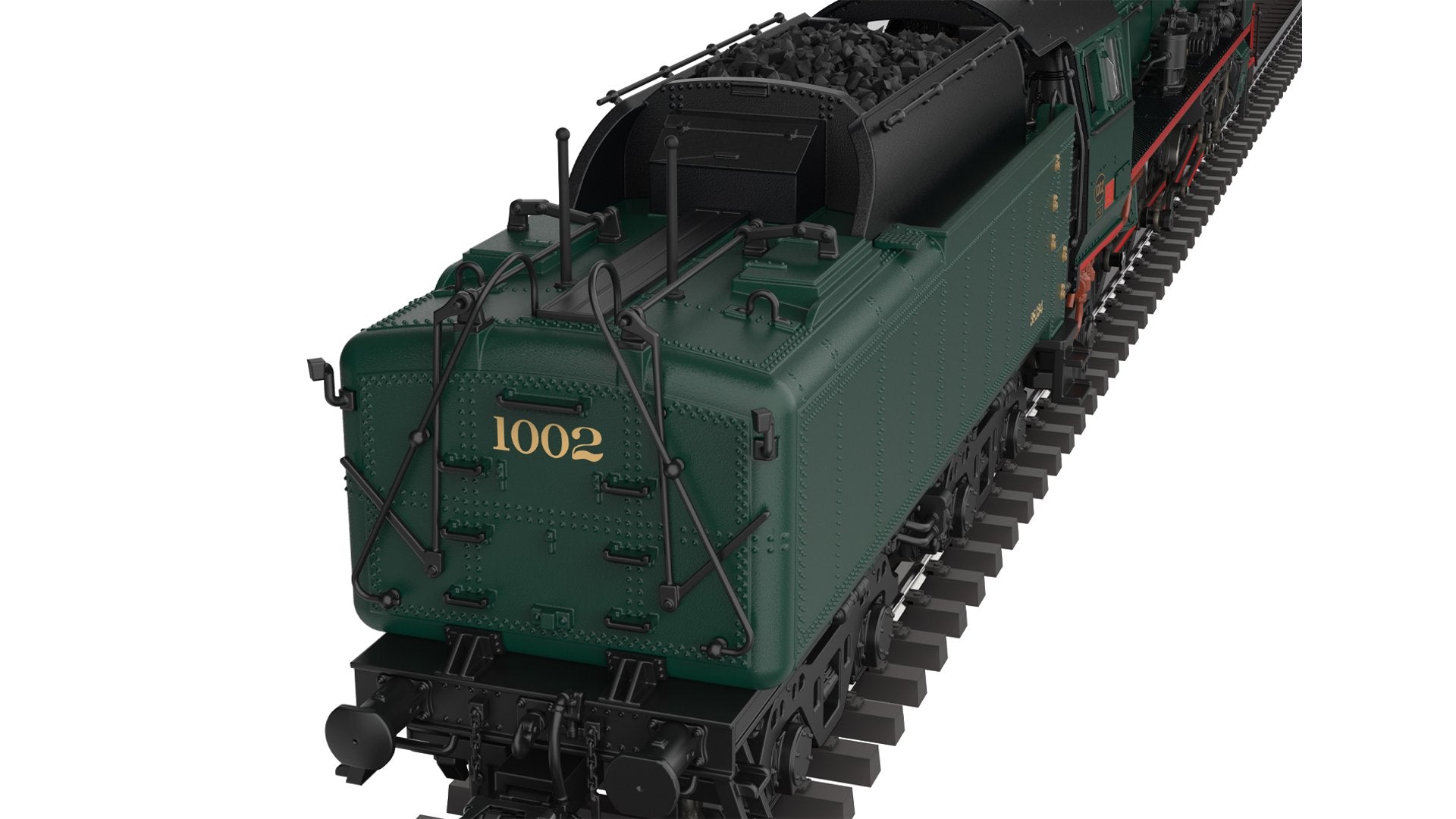

Marklin 39481 Class 1 Steam Locomotive
SNCB Steam Loco 1.002,Era VI
Model: The loco has an mfx+ digital decoder with lighting and sound functions. It also has a controlled high-performance motor with a flywheel, mounted in the boiler. One axle powered, two axles driven by coupling rods. Traction tires. The locomotive and tender are made mostly of metal. Factory-fitted smoke generator with speed-dependent, dynamic smoke exhaust. Dual headlights, digitally controllable. In addition, cab lighting and firebox flickering can be controlled separately in digital operation. Maintenance-free warm white and red LEDs are used for the lighting. With capacitor. Adjustable coupling with a guide mechanism between loco and tender. Tender has a close coupler with a guide mechanism and NEM pocket. The loco can safely negotiate curves with a radius of 437.5 mm / 17-1/4" (radius 2). Brake hoses, imitation screw couplers, and a signal holder are included. Length over buffers approximately 28.4 cm / 11-11/64".
A DC version of this model is available in the Trix H0 range as item 25481.
Find more Märklin explanation videos on our YouTube Channel
Spare parts for our articles can be found here in our spare parts search.
Highlights:
- Prototypical tooling variations on the boiler. With buffer capacitors to bridge short unpowered sections of track.
- Dual headlights.
- It has a factory-installed smoke generator and speed-dependent, dynamic smoke exhaust.
- Cab lighting can be controlled separately in digital operation.
- Fire flickering in the firebox is digitally controllable.
- Numerous separately applied details.
- World of Operation mfx+ digital decoder with lighting and sound functions.
- The buffer height conforms to NEM specifications.
Prototype: Class 1 express steam locomotive of the Belgian National Railways (SNCB/NMBS). Road number 1.002. Museum operating condition.
Digital Functions:
| Â | Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
| Headlight(s) | • | • | • | • | • |
| Smoke generator | • | • | • | • | • |
| Steam locomotive op. sounds | • | • | • | • | • |
| Locomotive whistle | • | • | • | • | • |
| Direct control | • | • | • | • | • |
| Sound of squealing brakes off |  | • | • | • | • |
| Engineer’s cab lighting |  | • | • | • | • |
| Flickering Light in Fire Box |  | • | • | • | • |
| Whistle for switching maneuver |  | • | • | • | • |
| Letting off Steam |  |  | • | • | • |
| Sound of coal being shoveled |  |  | • | • | • |
| Tipping grate |  |  | • | • | • |
| Air Pump |  |  | • | • | • |
| Water Pump |  |  | • | • | • |
| Injectors |  |  | • | • | • |
| Sanding |  |  |  |  | • |
| Replenishing water |  |  |  |  | • |
| Replenishing coal |  |  |  |  | • |
| Replenishing sand |  |  |  |  | • |
| Locomotive whistle |  |  |  |  | • |
| Locomotive whistle |  |  |  |  | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Length over the buffers approximately 28.4 cm / 11-11/64"
- Scale: H0 (1:87)
- Type: Steam Locomotives
