Marklin 60760 Digital High Efficiency Propulsion Set.
Model: Important Note! The manufacturer's warranty can only be covered, when this high-efficiency propulsion set has been installed by an authorized dealer. The warranty provisions are invalid if non-original Marklin components are used or if other makes of products not authorized by Marklin are used.
Highlights:
- Compact design, controlled digital decoder.
- Powerful 5-pole Marklin motor to replace an existing motor.
- Easy upgrade for many older locomotives.
- A great price!

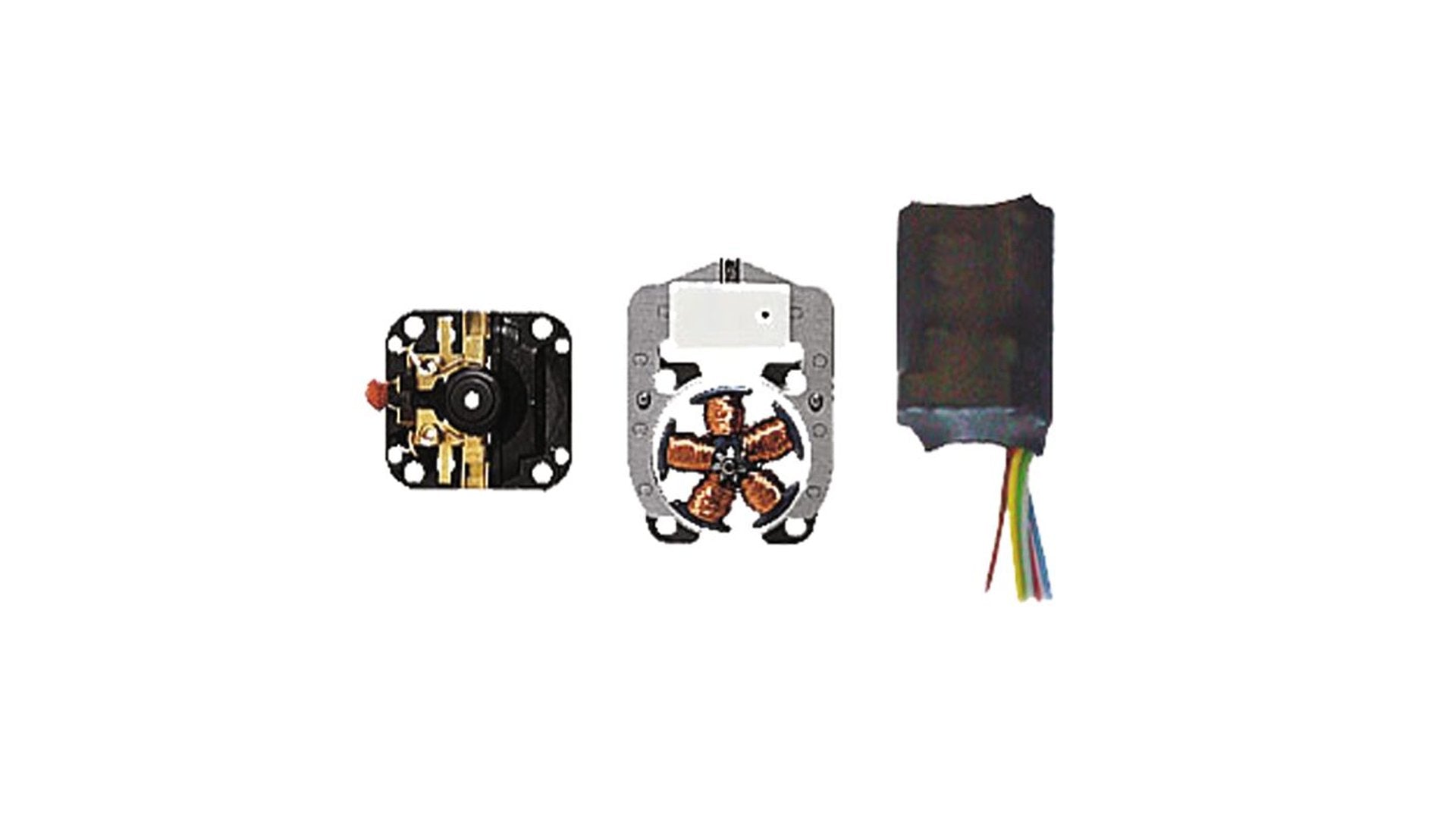

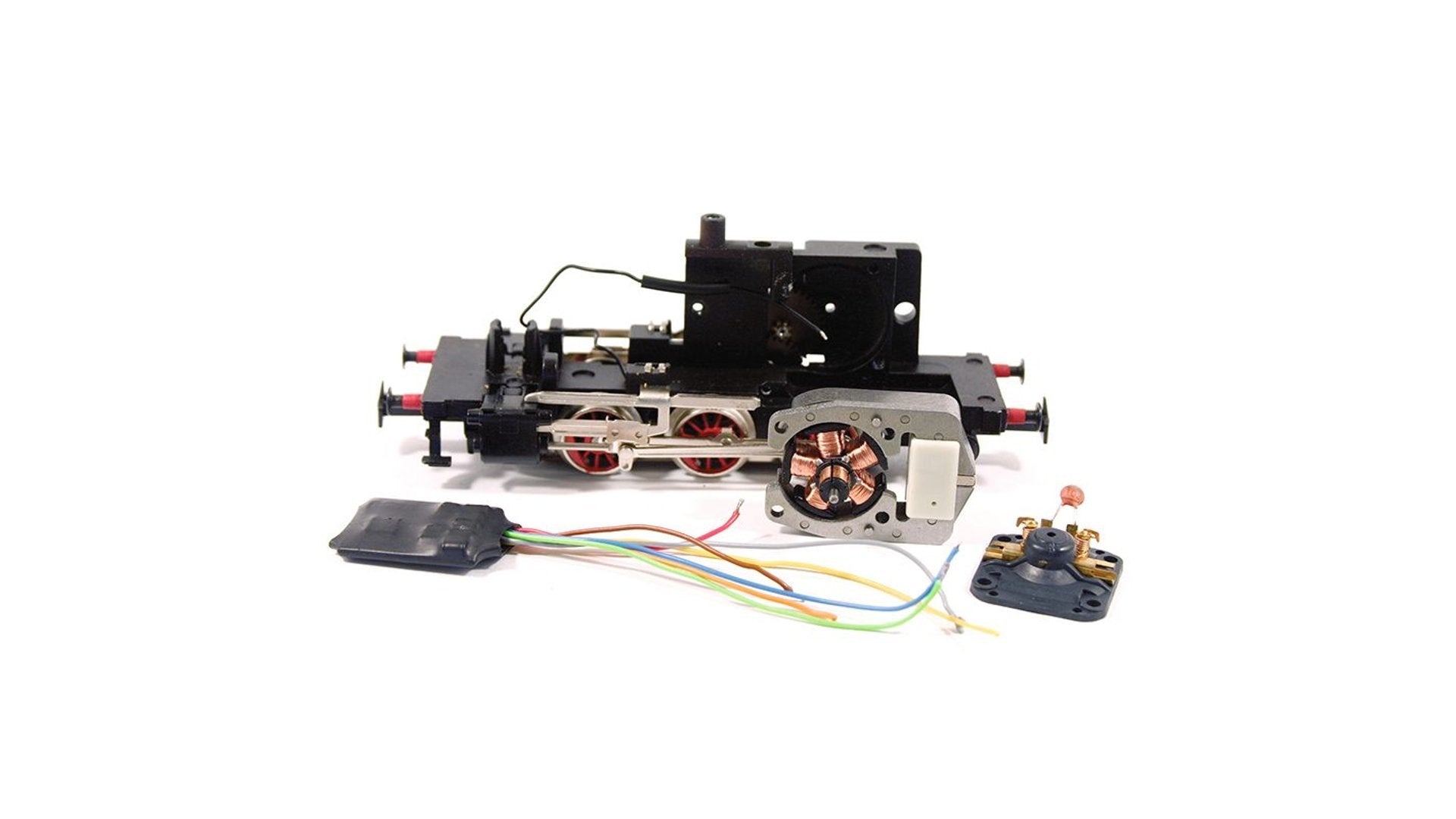

Prototype: This is a set for installation in a locomotive and comes with a controlled digital decoder and a powerful motor (conversion kit). It will fit into most Marklin H0 locomotives with drum-style commutator motors. The decoder has 80 programmable addresses, automatic switching between the modes of operation, a load compensation feature, and a digitally controlled connection for headlights / marker lights that change over with the direction of travel. The acceleration and braking delay can be controlled with a 6021 Control Unit or with Marklin Digital. The motor has a 5-pole armature, a powerful permanent magnet field, and a pre-installed bearing plate. Installation hardware is included. Decoder dimensions 25 x 17 x 6 mm / 1" x 11/16" x 1/4".
Digital Functions:
| Â | Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
| Headlight(s) | • | • | • | • | • |
| Direct control | • | • | • | • | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Scale: H0 (1:87)
- Type: Decoder
Warning
 |
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
