Marklin 60932 mfx High-Efficiency Electronic Circuit with a Sound Effects Generator.
Model: Spare parts for our articles can be found here in our spare parts search.

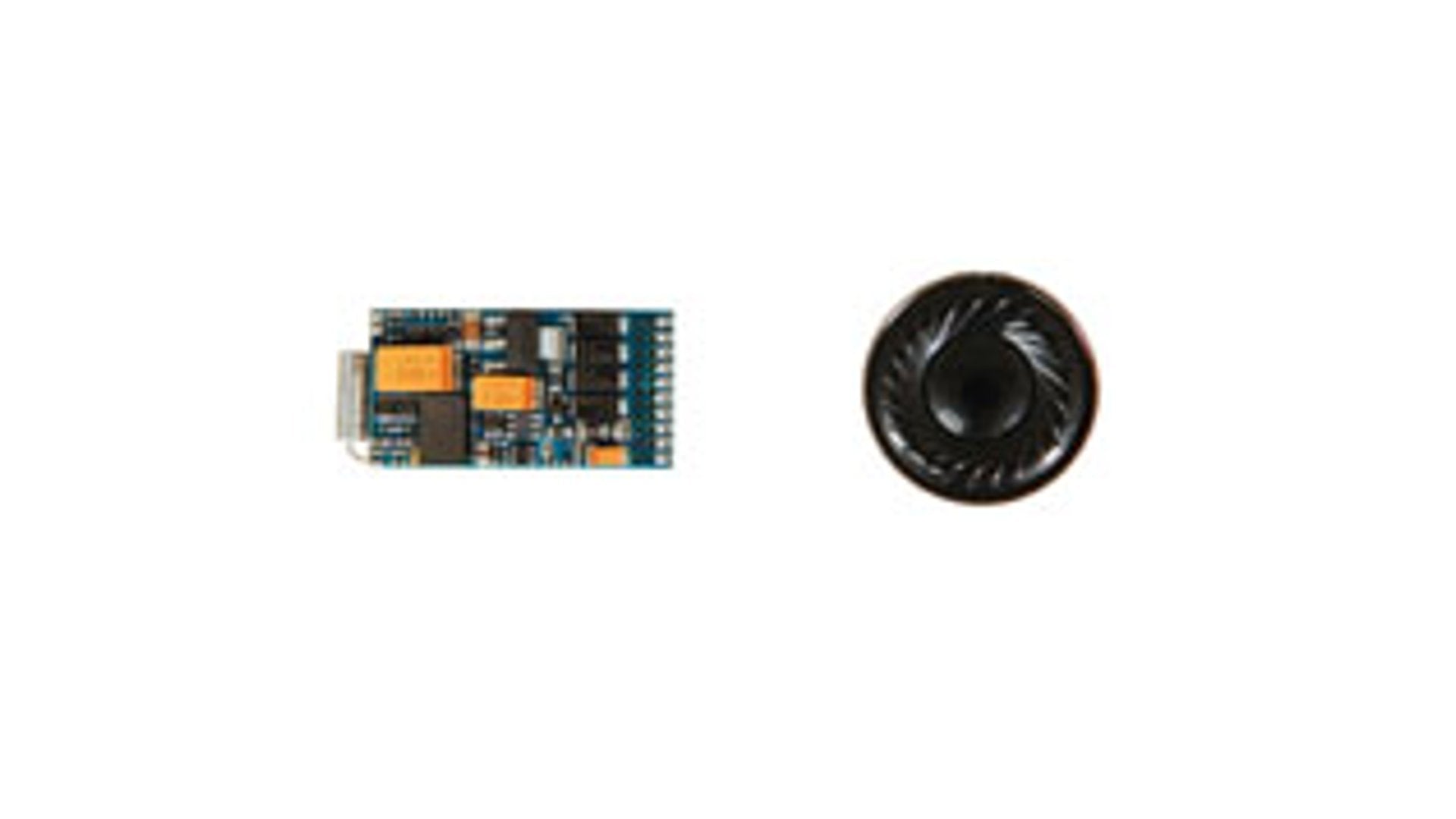

Prototype: For diesel locomotives. This kit is for converting Marklin H0 locomotives with built-in 6090, 60901, 60903, or 60904 high-efficiency propulsion to the new version with a feedback feature and sound effects. The existing high-efficiency motor is retained, the locomotive decoder is replaced, and a speaker is also installed. 12 typical diesel locomotive operating sound effects are pre-programmed and can be activated according to the table. The following special sound effects specific to the operation of the locomotive are present on this decoder: F7 = high pitched horn tone. F8 = low pitched horn tone. F9 = auxiliary diesel with constant rpm. F10 = sound of excess pressure safety valve letting off air. F13 = sound of doors being closed. F14 = startup of the motor. F15 = oil pump. Also available are controllable functions including direct control without acceleration/braking delay as well as 3 function outputs that can be assigned as desired, one of which changes over with the direction of travel. Circuit board dimensions 35 mm / 1-3/8" length x 15 mm / 9/16" width x 6 mm / 1/4" height. Speaker diameter 22 mm / 7/8", height 3 mm / 1/8".
Digital Functions:
| Control Unit | Mobile Station | Mobile Station 2 | Central Station 1/2 | Central Station 3/2* Mobile Station 2** |
|
| On/off function F/R | • | • | • | • | • |
| On/off function F1 | • | • | • | • | • |
| On/off function F2 | • | • | • | • | • |
| Diesel locomotive op. sounds | • | • | • | • | • |
| Direct control | • | • | • | • | • |
| Locomotive whistle | • | • | • | • | |
| Whistle for switching maneuver | • | • | • | • | |
| Horn blast 1 | • | • | • | • | |
| Horn blast 2 | • | • | • | • | |
| Operating sounds | • | • | • | ||
| Operating Sounds 1 | • | • | • | ||
| Letting off steam / air | • | • | • | ||
| Sound of squealing brakes off | • | • | • | ||
| Surrounding Sounds 1 | • | • | • | ||
| Operating Sounds 2 | • | • | • | ||
| Operating Sounds 3 | • | • | • |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Specifications:
- Scale: H0 (1:87)
- Type: Decoder
Warning
 |
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
