Minitrix T16488 Class 3900 Steam Locomotive
Model: The locomotive has a digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion. 6 axles powered. Traction tires. The locomotive has a smoke unit. The headlights change over with the direction of travel. They, the number boards, and the smoke unit will work in conventional operation and can be controlled digitally. The cab lighting can be controlled digitally. Maintenance-free, warm white LEDs are used for the lighting. The locomotive has articulated running gear to allow operation on smaller curves. The locomotive has Boxpok wheels. The minimum radius for operation is R2a (261.8 mm / 10-5/16"). Length over the couplers approximately 23 cm / 9".
This model is a cooperative project with the firm Broadway Limited Imports.
The image is digitally retouched. Notes for operation: This locomotive can be used on curved track with a radius of 261.8 mm / 10-5/16" or larger, but we recommend larger radius curves. Due to the overhang of the long boiler, signals, catenary masts, bridge railings, tunnel portals, etc. must be mounted to provide sufficient clearance on curves. The track must be well mounted for the high weight of the locomotive. The turntable and transfer table can be traversed by the locomotive but not turned or moved.
Spare parts for our articles can be found here in our spare parts search.
One-time series.

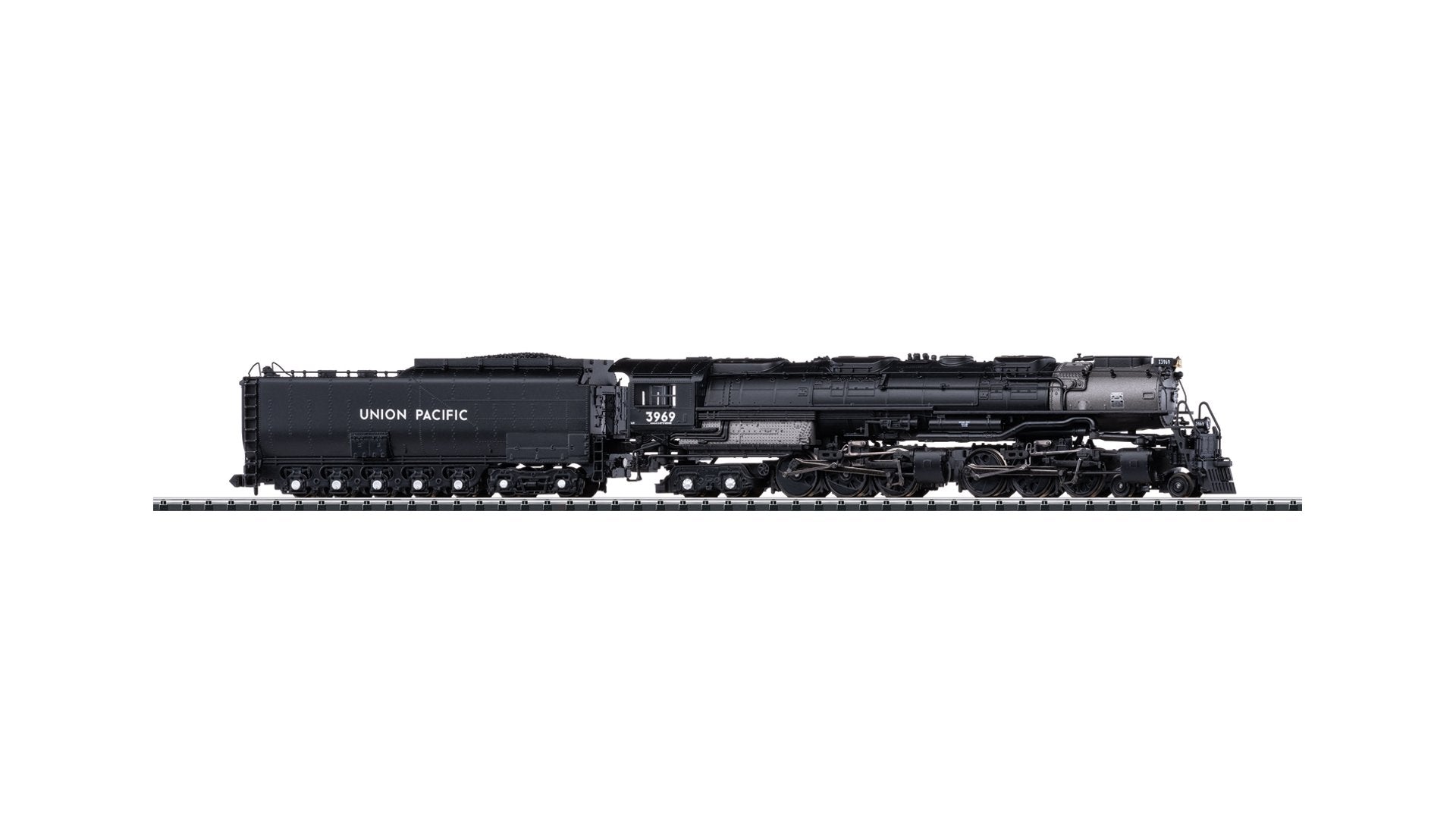

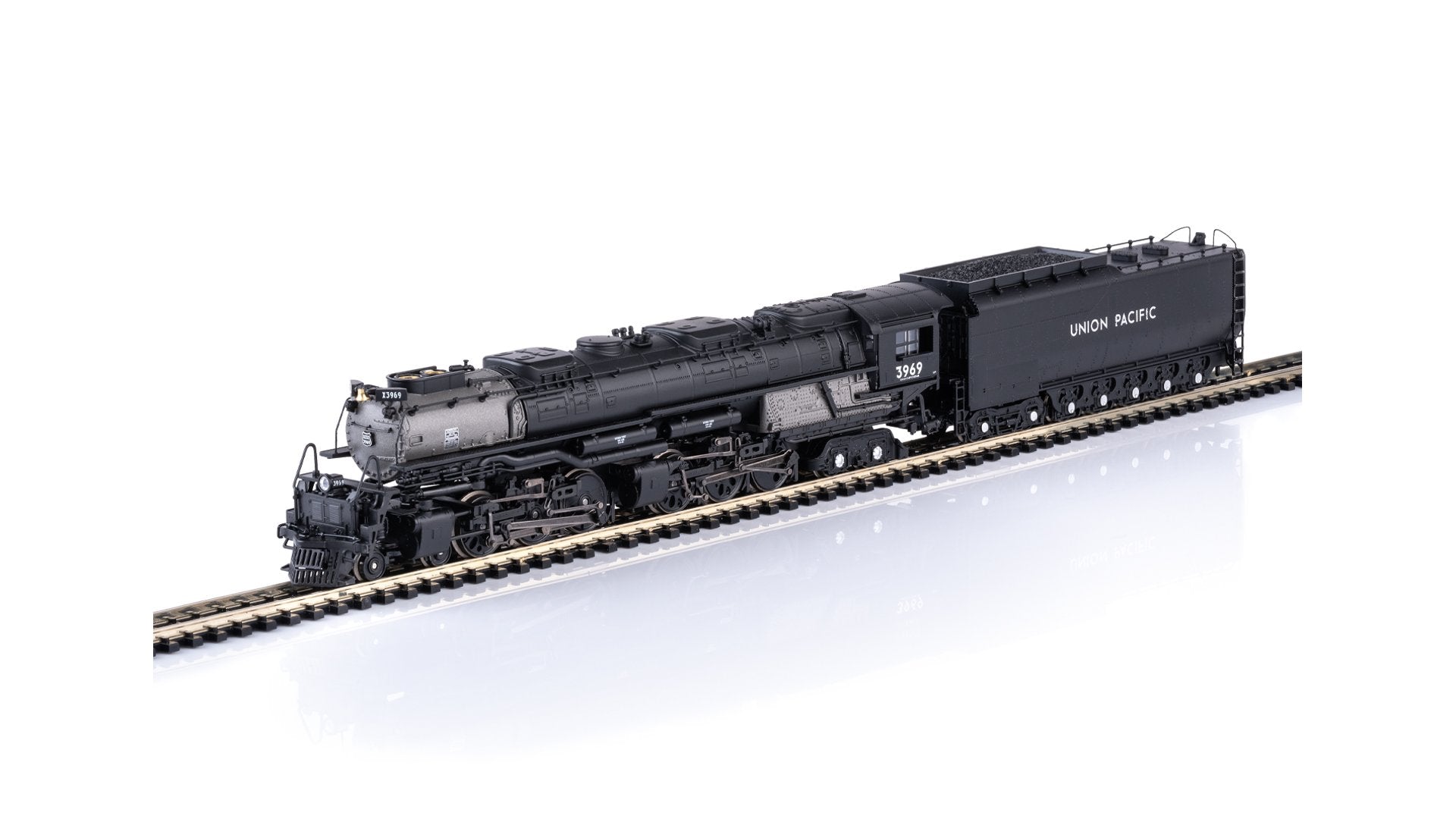

Prototype: Union Pacific Railroad (UP) class 3900 "Challenger" heavy American freight steam locomotive, with a coal tender. Locomotive road number 3969. The locomotive looks as it did in the Fifties.
Digital Functions:
| DCC | SX2 | SX | MFX | |
| Headlight(s) | • | • | ||
| Locomotive whistle | • | • | ||
| Steam locomotive op. sounds | • | • | ||
| Smoke generator | • | • | ||
| Direct control | • | • | ||
| Sound of squealing brakes off | • | • | ||
| Engineer’s cab lighting | • | • | ||
| Whistle for switching maneuver | • | • | ||
| Number Board Lights | • | • | ||
| Bell | • | • | ||
| Operating sounds | • | • | ||
| Air Pump | • | • | ||
| Injectors | • | • | ||
| Auxiliary Blower | • | • | ||
| Letting off Steam | • | • | ||
| Special sound function | • | • | ||
| Cab Radio | • | • | ||
| Coupler sounds | • | • | ||
| Bell | • | • | ||
| Replenishing fuel | • | • | ||
| Replenishing fuel | • | • | ||
| Headlight(s) | • | • | ||
| Switching maneuver | • | • | ||
| Rail Joints | • | • | ||
| Locomotive whistle | • | • | ||
| Locomotive whistle | • | • |
Specifications:
- Length over the buffers approximately 2.30 cm
- Scale: N (1:160)
- Type: Steam Locomotives
Warning
|
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
