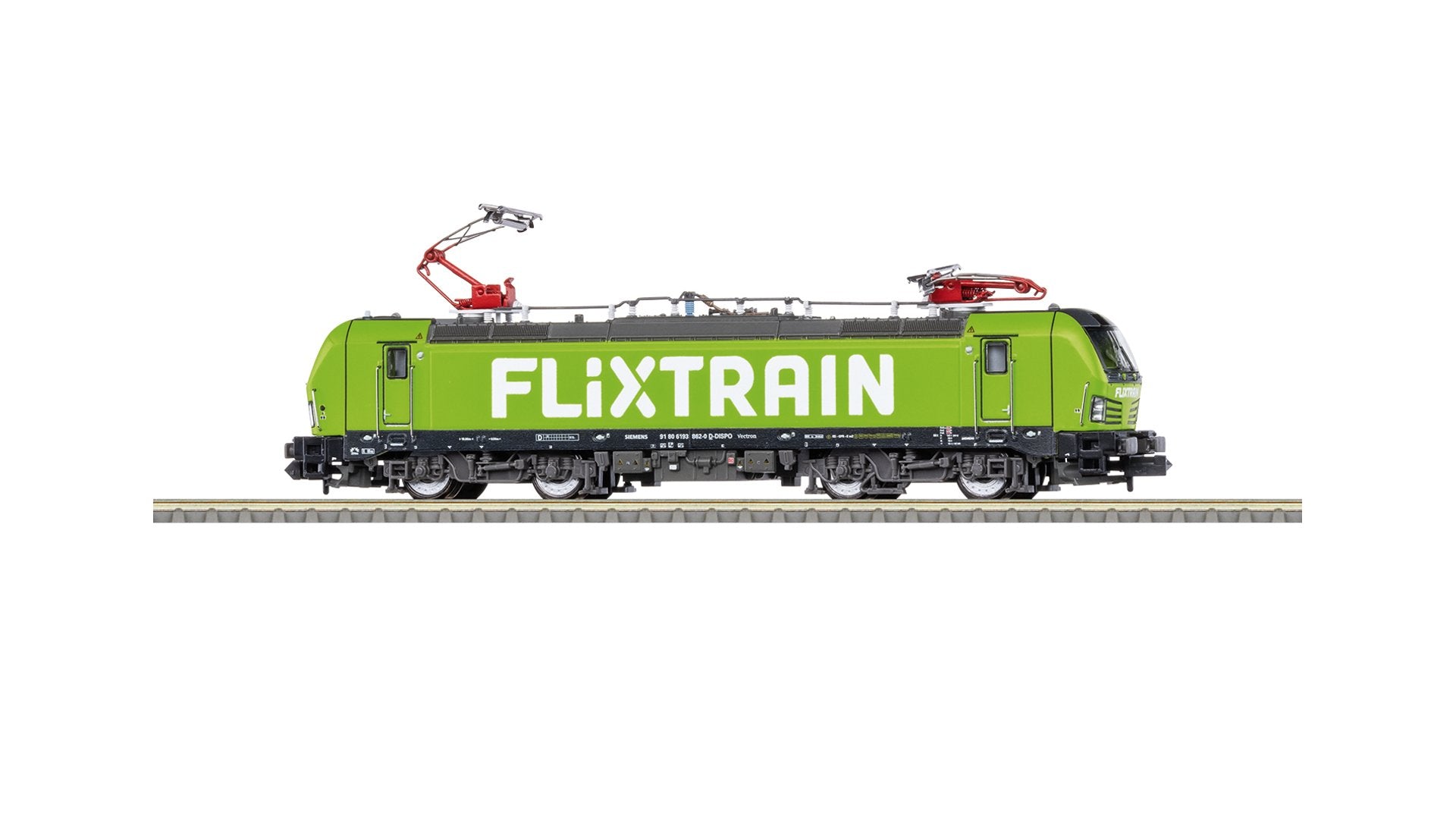

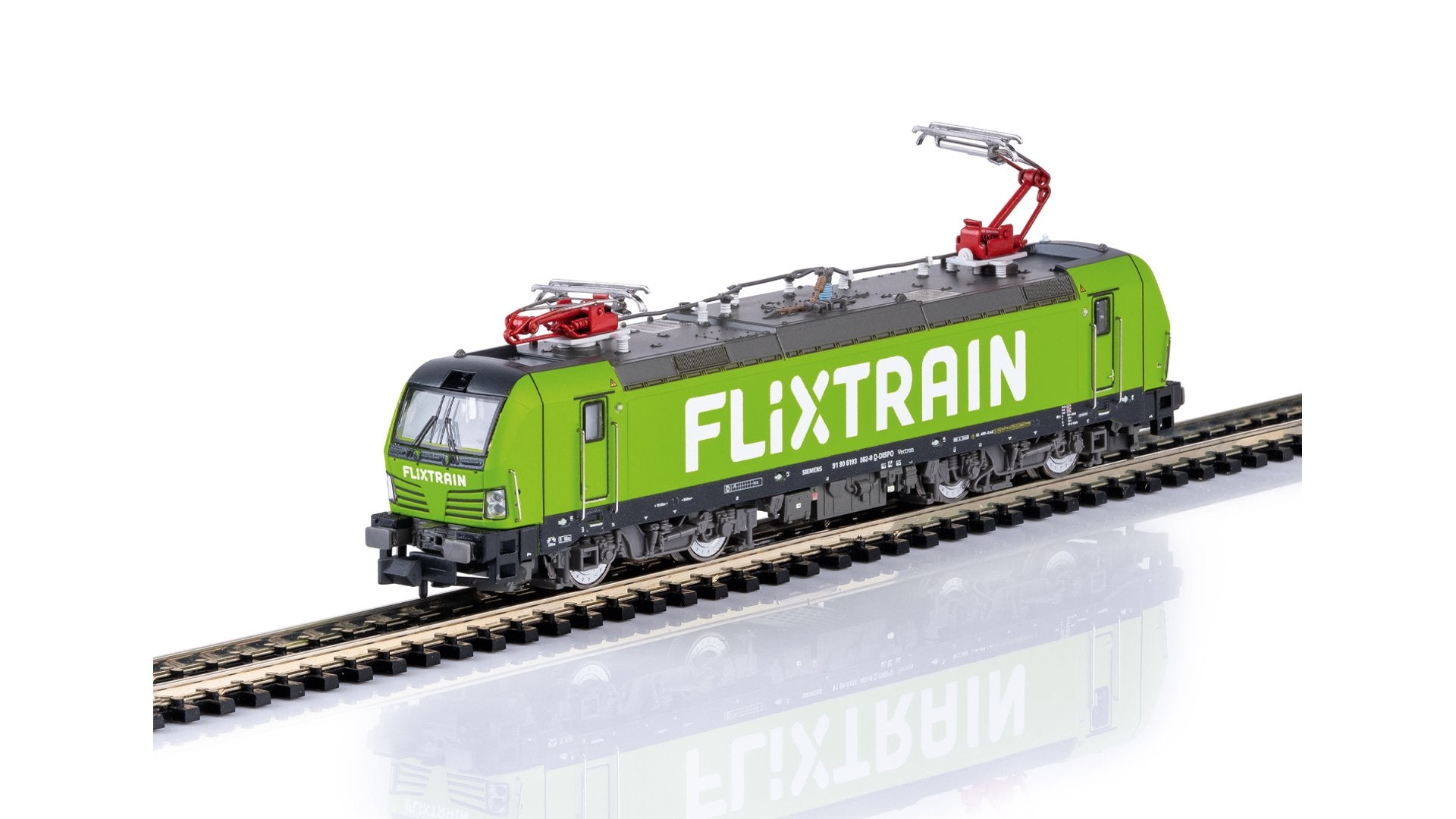

Minitrix T16835 Class 193 Electric Locomotive
Model: The locomotive has a built-in digital decoder and a sound generator for operation with mfx and DCC. It also has a motor with a flywheel. 4 axles powered. Traction tires. The triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. The headlights at Locomotive Ends 2 and 1 can be turned off separately in digital operation. When the headlights are off at both ends, the double "A" lights are on at both ends. Long distance headlights can be controlled digitally. Cab lighting can be controlled digitally. Maintenance-free warm white and red LEDs are used for the lighting. Brake hoses for mounting on the locomotive are included. Length over the buffers 119 mm / 4-11/16".
Manufactured by Gebr. Marklin & Cie. GmbH under license from Flix SE
Spare parts for our articles can be found here in our spare parts search.
One-time series.
Highlights:
- Locomotive body and frame are constructed of die-cast zinc.
- Numerous light functions can be controlled separately in digital operation.
- Digital decoder and extensive operation and sound functions included.
Prototype: Class 193 (Vectron) electric locomotive. Locomotive of ELL Germany, Inc. leased to FlixTrain, Inc., Munich, registered in Germany. Locomotive road number 193 862-0. The locomotive looks as it did around 2020.
Digital Functions:
| DCC | SX2 | SX | MFX | |
| Headlight(s) | • | • | ||
| Low Pitch Horn | • | • | ||
| Electric locomotive op. sounds | • | • | ||
| High Pitch Horn | • | • | ||
| Direct control | • | • | ||
| Sound of squealing brakes off | • | • | ||
| Headlight(s): Cab2 End | • | • | ||
| Long distance headlights | • | • | ||
| Headlight(s): Cab1 End | • | • | ||
| Station Announcements | • | • | ||
| Conductor's Whistle | • | • | ||
| Compressor | • | • | ||
| Blower motors | • | • | ||
| Letting off Air | • | • | ||
| Engineer’s cab lighting | • | • | ||
| Special sound function | • | • | ||
| Horn | • | • | ||
| Doors Closing | • | • | ||
| Operating sounds | • | • | ||
| Train control warning sound | • | • | ||
| SIFA warning sound | • | • | ||
| Sanding | • | • | ||
| Warning announcement | • | • | ||
| SIFA warning sound | • | • | ||
| Train announcement | • | • | ||
| Train announcement | • | • | ||
| Light Function – Light test | • | • | ||
| Sound of uncoupling | • | • | ||
| Special sound function | • | • |
Specifications:
- Length over the buffers approximately 11.90 cm
- Scale: N (1:160)
- Type: Electric Locomotives
Warning
|
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
