NOCH NO51250 micro-rooms LED Building Lighting Kit

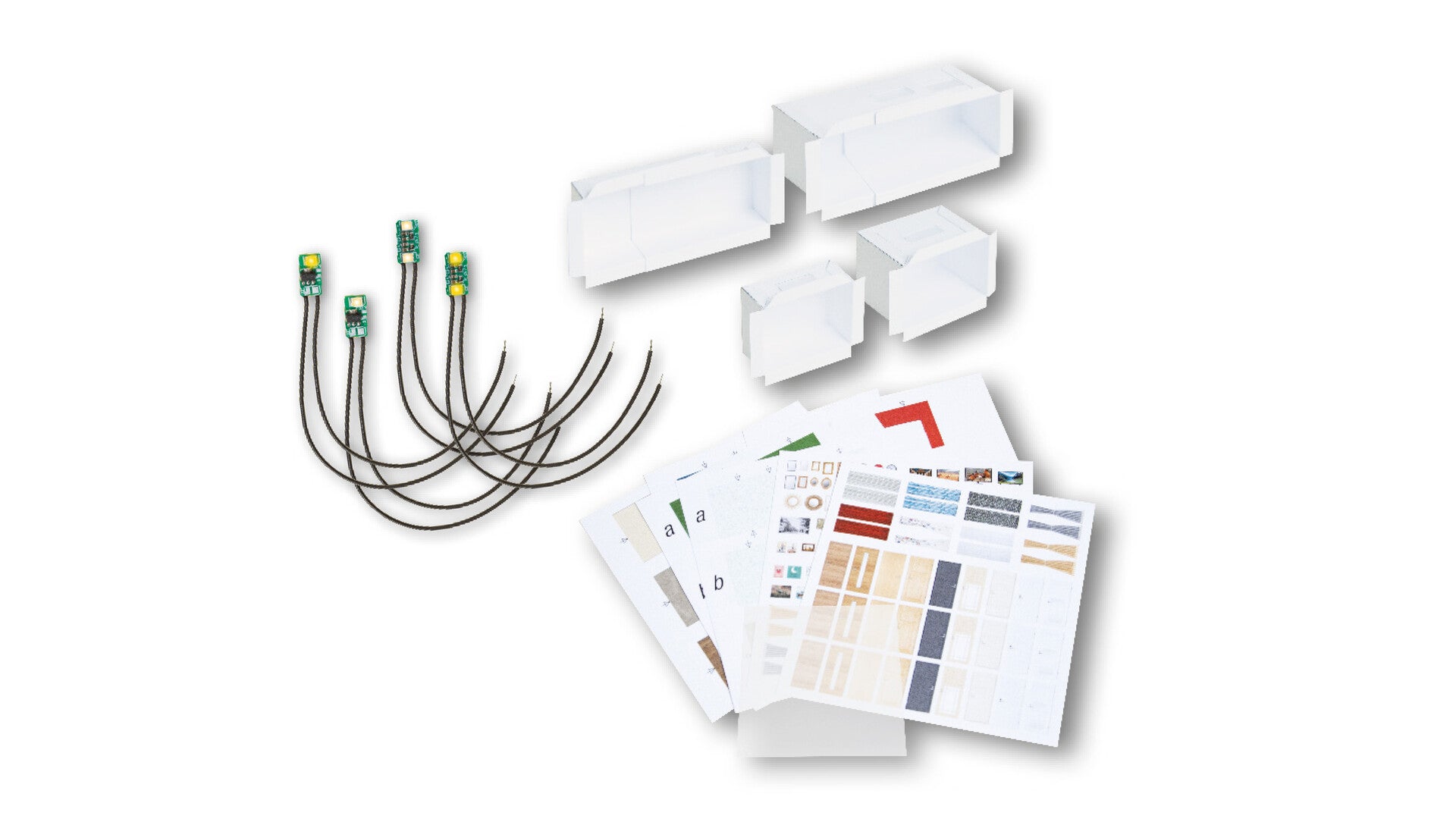

Contents: 4 LED lights for building interior*: 1 x single LED, cool white; 1 x single LED, warm white 1 x double LED, cool white; 1 x double LED, warm white 1 diffuser film, 5 cm x 5 cm sheet 7 decorative sheets with doors, wallpaper, curtains and lots of decorative elements 8 micro-rooms building interiors*: 2 x type A: 3.5 cm x 1.5 cm, 2.8 cm deep 2 x type B: 3.5 cm x 3.0 cm, 2.8 cm deep 2 x type C: 4.6 – 8.7 cm x 1.5 cm, 2.8 cm deep 2 x type D: 4.6 – 8.7 cm x 3.0 cm, 2.8 cm deep 1 set of detailed instructions *One of each LED type is included in the set to try out. Up to 4 light rooms can be equipped with these. You can also obtain other LEDs sorted by type for your individual needs from NOCH
We’ve Seen the Light! micro-rooms The NOCH micro-rooms system is based on cardboard light rooms of various sizes, which can be decorated using the included decoration sheets. Equipped with flooring, wallpaper, etc., they are ideal for furnishing with NOCH furniture and figures. The LEDs are mounted at the top of the light room. The LED light is enhanced by the included diffusion film, which distributes the light realistically throughout the room. If you like, you can even add some curtains, and you have another highlight for your model world! Create lovingly detailed scenes with NOCH products, from everyday moments at the kitchen dining table to passionate nights in the bedroom! The starter set for building interior lighting includes LEDs in cool white, warm white, and both single and double versions. They are connected to a 16 V model railway transformer (please refer to the instructions!) and are suitable for both direct and alternating current. The LED boards measure 0.7 x 1.8 cm, making them suitable for house lighting systems and light boxes from other manufacturers, such as Viessmann®. Product Highlight:
single and double LEDs cool white and warm white LEDs particularly good value flicker-free & long-lasting can be connected to a 16 V model railway transformer with a series resistor (300 Ohms) suitable for AC and DC fit other manufacturers’ lighting systems, e.g. Viessmann®
For using the NOCH Mirco-Rooms LEDs with a model railway transformer (output max. 16 V AC, e.g., Märklin 6647, 66471, 6631, 37540, etc.; Fleischmann 6755, 6735, etc., and other manufacturers), each LED board connected to the transformer must be used with a series resistor (300 Ohms). The resistor must be installed (e.g., soldered) between one of the board’s connection wires and the transformer. The direction of the resistor and the choice of wire are arbitrary. Please refer to the instructions for details. WARNING: If the resistor is not used, the board may burn out. There is a risk of injury and fire! IMPORTANT NOTICE:Unfortunately, there was an error in the first production batch (batch number 32134012). The required resistors are not included with this batch, but you can request them from us. Please refer to the consumer warning for details.
Scale: HO
WARNING: Model building item. Not a toy. Not suitable for children under 14.
