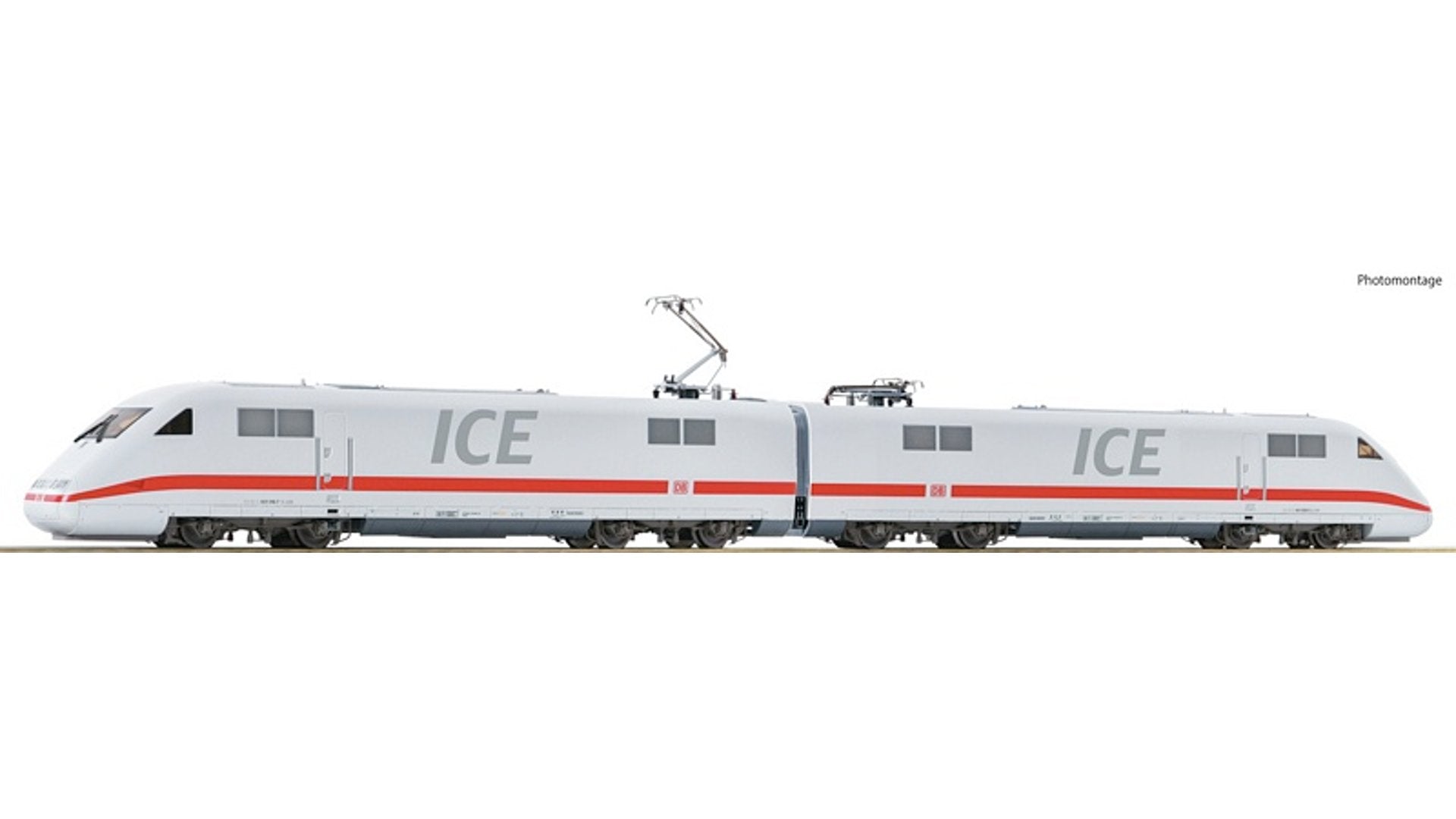

Roco 70402 2 piece set: Electric multiple unit ICE 1 (class 401), DB AG
Set of two ICE 1 power heads class 401 of the Deutsche Bahn.
Update!
â With a coreless armature motor available for the first time
â For the first time with sound in both power heads
â One unit powered
â With extra-applied windshield wipers available for the first time
â New roof design with a delicate pantograph
â Operation condition: "Redesign 2005"
â Without transition aprons
The era of high-speed transport at the Deutsche Bundesbahn began in the summer of 1991 with the ICE 1. A completely new railway system was introduced for the first time and excelled with newly developed multiple units, unique high-speed lines, and a complex timetable reform. The power head concept with closed, wide coach transitions was groundbreaking for modern high-speed rail transport. The maximum speed of 280 km/h in regular operation and the high comfort level revolutionised rail transport and secured essential market shares in the fight against the automobile and the aeroplane competition.
Operating number: 401 018-7 Epoch: VI Gauge: H0 Elect. system: 2L - Digital
| General Data | |
| Coupling | NEM shaft 362 with close coupling mechanism |
| Minimum radius | 358 mm |
| Flywheel |
yes |
| Scale | 294 |
| Number of driven axles | 2 |
| Number of axles with traction tyres | 1 |
| Electrical | |
| Head light | 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
|
LED head light Sound |
yes |
| Motor | Coreless |
| Control | 2L - Digital |
|
Interface |
Electrical interface for traction units PluX22 |
| Digital decoder | DCC, Function decoder |
| Decoder-Type | MX645P16 |
| Measurements: | |
| Length over buffer: | 472 mm |
|
|
