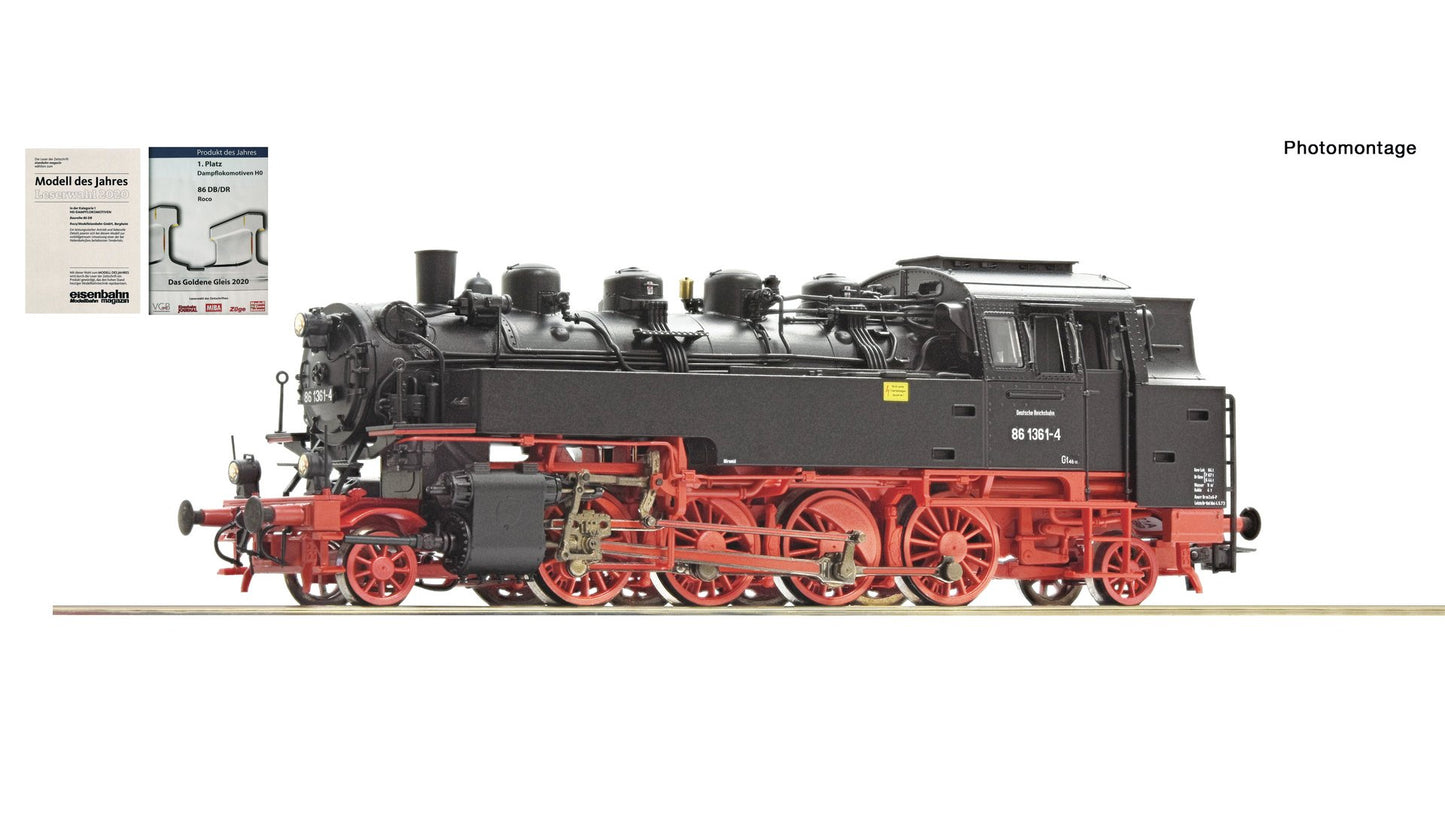

Roco 73032 Steam Locomotive 86 1361-4
From 1928 to 1943, almost every German locomotive factories delivered this type of locomotive to the Deutsche Reichsbahn Gesellschaft (altogether 775 locomotives). The 1000-PS locomotives were designed to reach a maximum speed of 70-80 km/h and this meant that they could not only be used in their primary application field for "branchlines" but also for main and feeder lines. At the beginning of the 1950s, 164 class 86 locomotives were still available for operation in the GDR. Most of the locomotives were running for the depot in Aue on the lines of the Ore Mountains. In 1970, 162 locomotives were still provided with an EDP-compliant running number but then were scrapped from 1973 on.
Highlights:
- With bell
- Rich detailing on the model with many separately applied plug-in parts
- Long cut-out water tanks
- Fine metal wheel sets
- Depot Bw Aue/Bw Karl-Marx-Stadt
- Smoke generator can be retrofitted
Operating number: 86 1361-4 Epoch: IV Gauge: H0 Elect. system: DC
| General Data | |
| Number of driven axles: | 4 |
| Axles with traction tires: | 1 |
| Interior fitting: | N/A |
| Minimum radius: | 419 mm |
| Coupling: |
NEM shaft 362 with close coupling mechanism |
| Electrical | |
| Interface: |
Electrical interface for traction units PluX22 |
| Headlight: |
Both sides of the vehicle are equipped with direction dependent triple headlights |
| Sound: | No |
| Flywheel: | Yes |
| Additional light function: | No |
| LED Interior lighting: |
No |
| Digital decoder: | N/A |
| LED headlight: | Yes |
| Motor: | 5-pole motor |
|
Smoke generator retrofittable: |
Yes, Using article number Seuthe no. 10(Analog) and Seuthe no. 11(Digital) |
| Measurements: | |
| Length over buffer: | 160 mm |
Warning: For Adults Only
