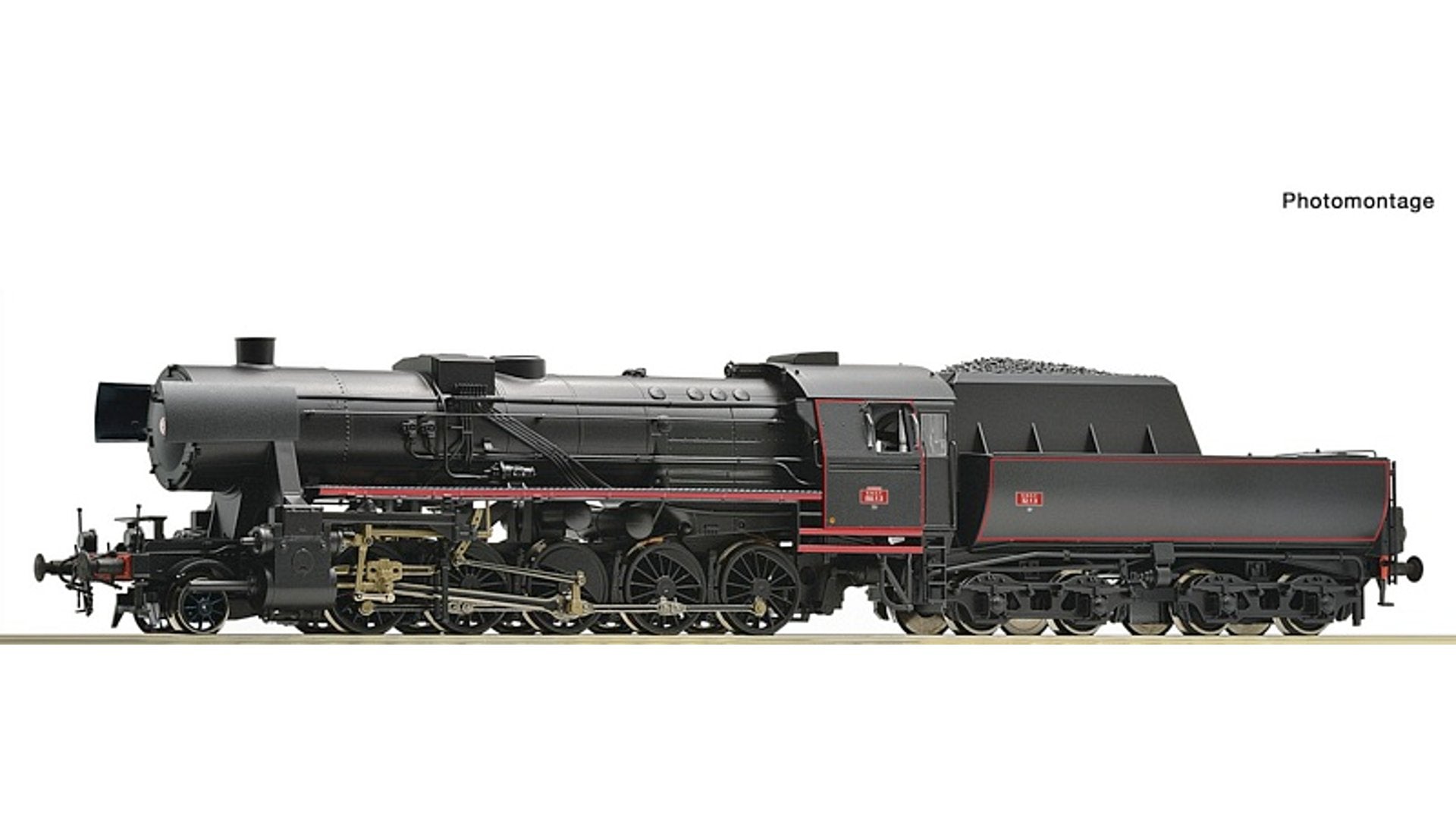

Roco 78281 Steam locomotive 150 Y SNCF
Steam locomotive 150 Y of the French State Railways.
Drive on two axles of the tender and via cardan shaft on all five drive axles of the locomotive.
â Variant with smoke deflectors
â Fine spoked metal wheels
â Driving and coupling rods made of metal die cast
â With set of etched signs included
â Smoke generator retrofittable
â Z21 driver's cab available
In 1943/44, the locomotive factory Société Alsacienne de Constructions Mécaniques (SACM) in Graffenstaden near Strasbourg built over 100 class 52 locomotives. In 1945/46, the SNCF ordered even another additional 17 locomotives. There, class 52 was designated class 150 Y. A unique feature of the locomotives was the shorter chimney, whose purpose was not to exceed the French clearance gauge. The class 150 Y hauled both heavy goods trains and passenger trains in the eastern region of the SNCF. They were in operation there until the end of the 1950s.
Operating number: 150.Y.3 Epoch: III Gauge: H0 Elect. system: AC
Scale: 294
| General Data | |
| Coupling | NEM shaft 362 with close coupling mechanism at the tender |
| Minimum radius | 358 mm |
| Flywheel |
yes |
| Z-21 Cab | 294 |
| Number of driven axles | 2 |
|
Number of axles with traction tyres |
2 |
| Electrical | |
| Smoke generator retrofittable | yes |
| Head light | Direction dependent dual headlights |
| Digital decoder | NEM 652 |
| Motor | 5-pole motor |
|
Smoke generator Article number (digital) |
Seuthe steam unit no. 11 |
|
LED head light Sound |
yes |
| Control | AC |
| Interface | Electrical interface for traction units according to NEM 652 standards with plug-in fixture |
| Decoder-Type | MX645R |
|
Measurements: |
|
| Length over buffer: | 265 mm |
