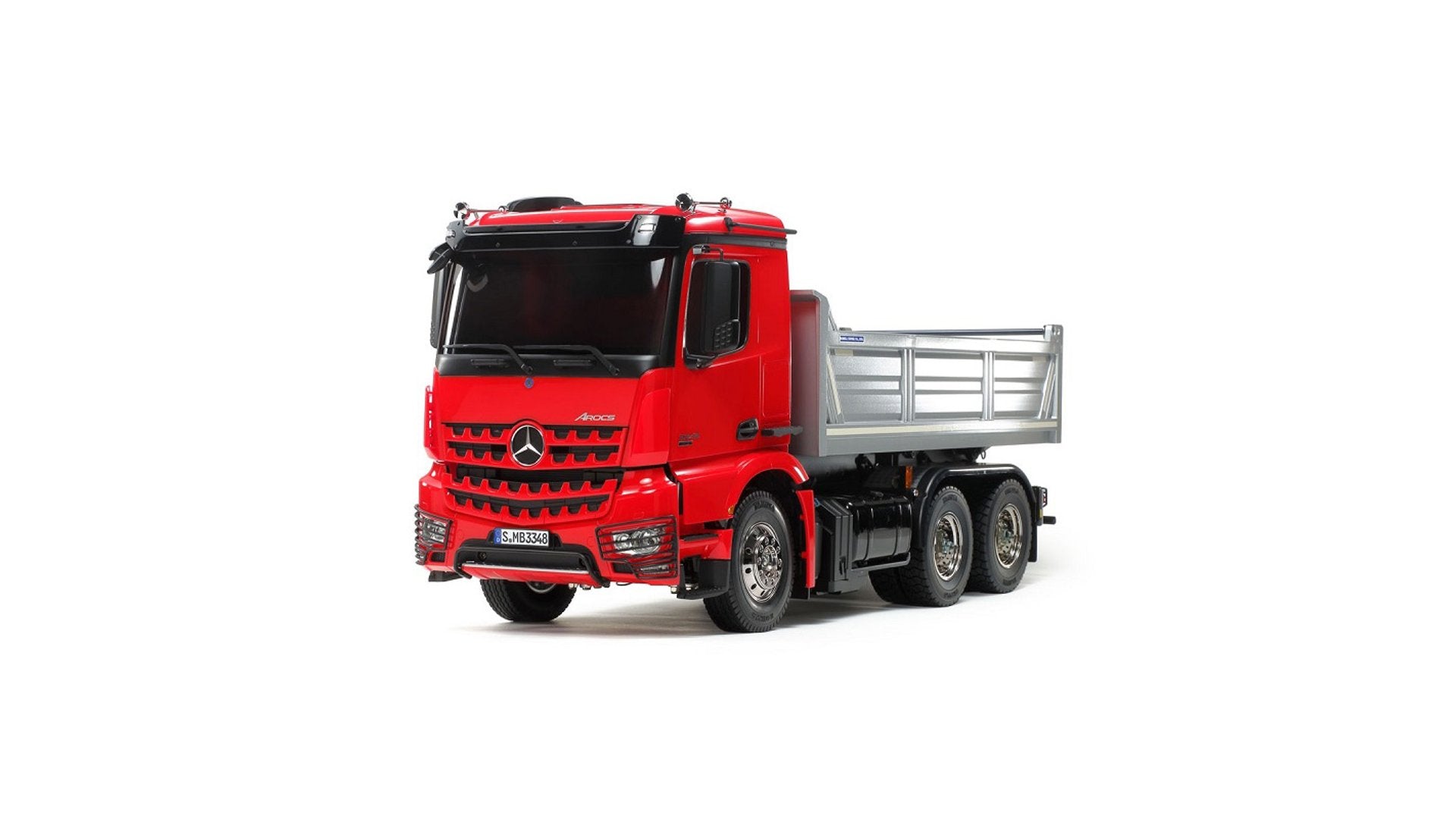

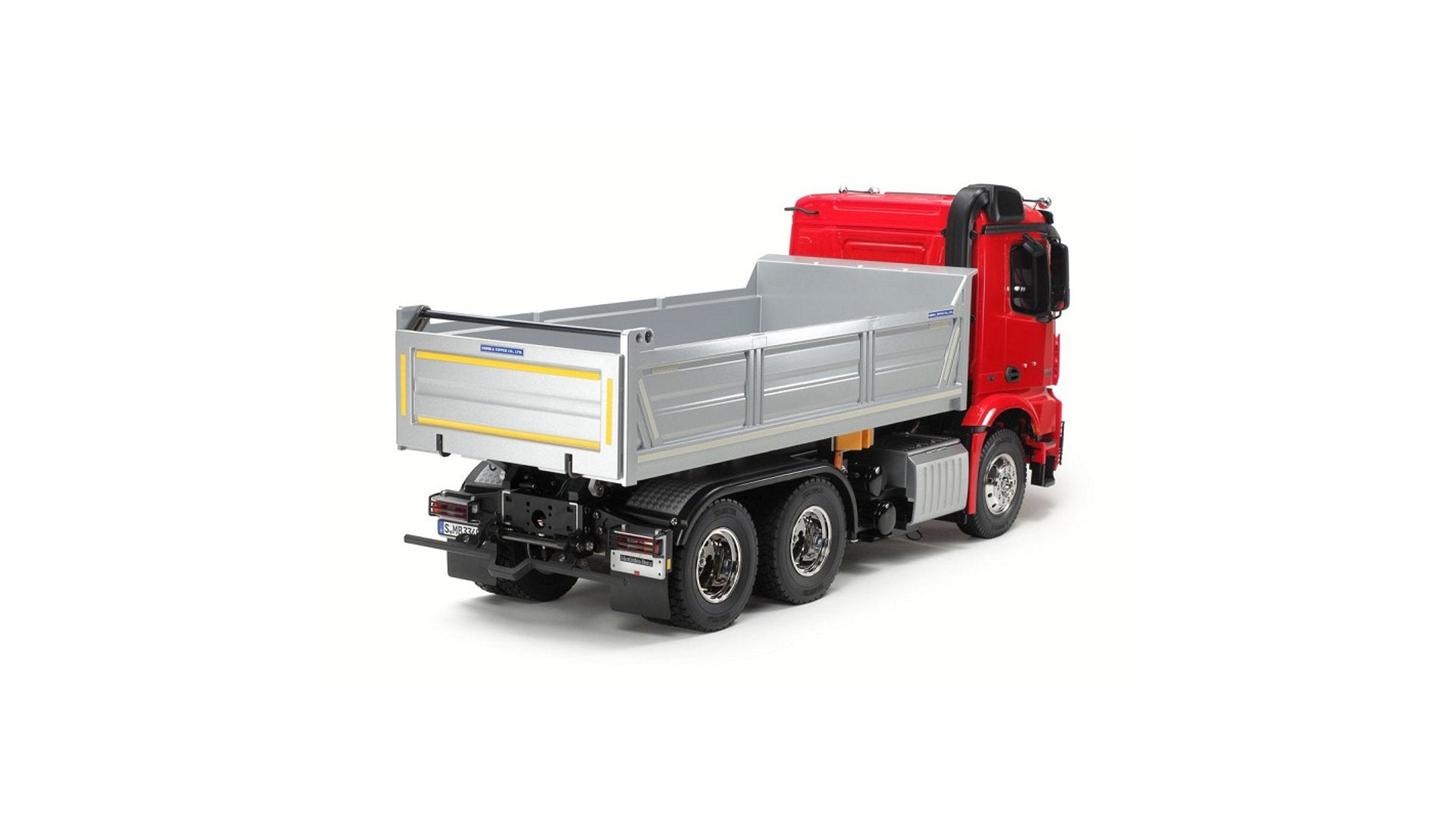

Tamiya 56361 RC Mercedes Benz Arocs 3348 Red Edition
Description: This is a special edition of the R/C Mercedes Benz Arocs tipper truck kit (Item 56357), the stylish 3-axle truck with movable bed and distinctive bucket tooth grille. It is a great option for R/C enthusiasts without the time or confidence to apply a paint job to their creation, as parts come pre-painted in Italian red (cab) and Gloss aluminum (rear bed), and given a urethane clear coating for a beautiful, lasting finish.
Features:
- 3-speed transmission with constant mesh gears
- Metal rail chassis Scale suspension with heavy duty metal leaf-springs and coil spring dampers
- Propeller-shaft driven rear axles (both axles are used to drive the truck)
- Numerous scale body accessories including metal grab rails and side mirror supports, metal dual exhaust pipes and chrome plated parts (grille, fuel tanks, side steps, horns, wipers, visor, rims, bumpers, light mounts, mirrors and tire guards)
- Built-in Box trailer made of high quality aluminum
- Oilite bearings (bushings).
Includes:
- Injection molded body and truck interior
- 10 scale appearance rims and tires
- 540 motor Decal sheet (with license plate decal for bumpers)
- Mud flaps
- Illustrated instructions
Requires:
- Radio: 4-channel with 4-channel receiver and analog trim functions
- Servos: Two standard size (1-steering, 1-shift)
- Electronic Speed Control: Tamiya TEU302BK recommended, do not use the Tamiya TEU101BK or the TEU104BK
- Battery: 6-cell flat pack (or 7-cell hump)
- Charger for battery pack
Specs:
- Length: 22.68"
- Width: 7.48"
- Gear Configuration: Low (1st) gear ratio: 1:32.49 Middle (2nd) gear ratio: 1:17.66 Top (3rd) gear ratio: 1:10.66
Comments: The Tamiya Multi Function Control Unit is not included and provides many different truck related sound effects.
Both vehicle types require a 4 channel stick type radio for full function. If you're going to outfit your vehicle with one of our multifunction units (MFU), you will need to choose a analog radio. Shifting into gear is extremely easy once your transmission is adjusted correctly.
Our Semi trucks and Highlifts use 3speed transmissions for more maneuverability and true scale realism. Whether you're hauling a big load or climbing some rough terrain, the ability to shift into low gear can make the difference. High speed runs are no problem once you kick it into 3rd gear, when its time to move out!
Below you will see the basic concept on how the servo moves the transmission into all three gears. It is best to get the transmission adjusted with your trims centered and only using the collar on the transmission rod to adjust final increments. This will allow for the best operation if you're using a MFU unit.
*Make sure to use loctite on the grub screw in the collar to prevent having to readjust the transmission again.
*Taking a little extra time to set the transmission up will provide you with better performance and less adjustments down the road.
| Type | Detail |
| Scale | 1/14 |
| Construction type | Assembly kit |
| Terrain use | On-road |
| Drive-train | 2-axle semi |
| Drive type | 3-speed |
| Drive line | Solid axle |
| Differential type | Gear |
| Suspension | Leaf spring |
| Steering mechanism | Bell-crank |
| Shock damper | Friction damper |
| Shock damper material | Aluminum |
| Tire type | Rubber |
| Tire tread | Radial |
| Body material | ABS Plastic |
| Chassis material | Aluminum |
| Electronic Speed Control (ESC) | Not Included |
| ESC model | N/A |
| LED Light buckets | Yes |
| LED lights | No |
| Motor | 540-brushed type |
| Bearings | Metal and plastic bushings |
| Adjustable camber | Fixed |
| Adjustable toe angles | Fixed |
| Adjustable ground clearance | Fixed |
| Adjustable gear ratio | Fixed |
| Adjustable wheelbase | Fixed |
| Adjustable track width | Fixed |
| Adjustable shock angle | Fixed |
| Special feature 1 | Total length: 576mm Total width: 190mm |
| Special feature 2 |
The Arocs 3348 form is recreated by an injection molded body, with separate side mirrors and visor, etc. |
| Special feature 3 |
Cab parts are molded in red PS (polystyrene) and pre-painted in Italian red (TS-8), while bed parts are molded in gray ABS and pre-painted in Gloss aluminum (TS-17). All parts have a urethane top coat. |
| Special feature 4 | Tire Width: F/R both 22mm |
| Special feature 5 | Diameter: F/R both 83mm |
| Special feature 6 | Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1 |
| Special feature 7 | Weight Fully-Equipped: about 3,1kg (without multi function unit) |
| Special feature 8 |
Compatible with Electric Actuator Set (Item 56545) for realistic truck bed motion. |
| Requires A | 7.2 battery & charger |
| Requires B | 4-channel radio gear |
| Requires C | Electronic speed control |
| Requires D | TS plastic model paint |
