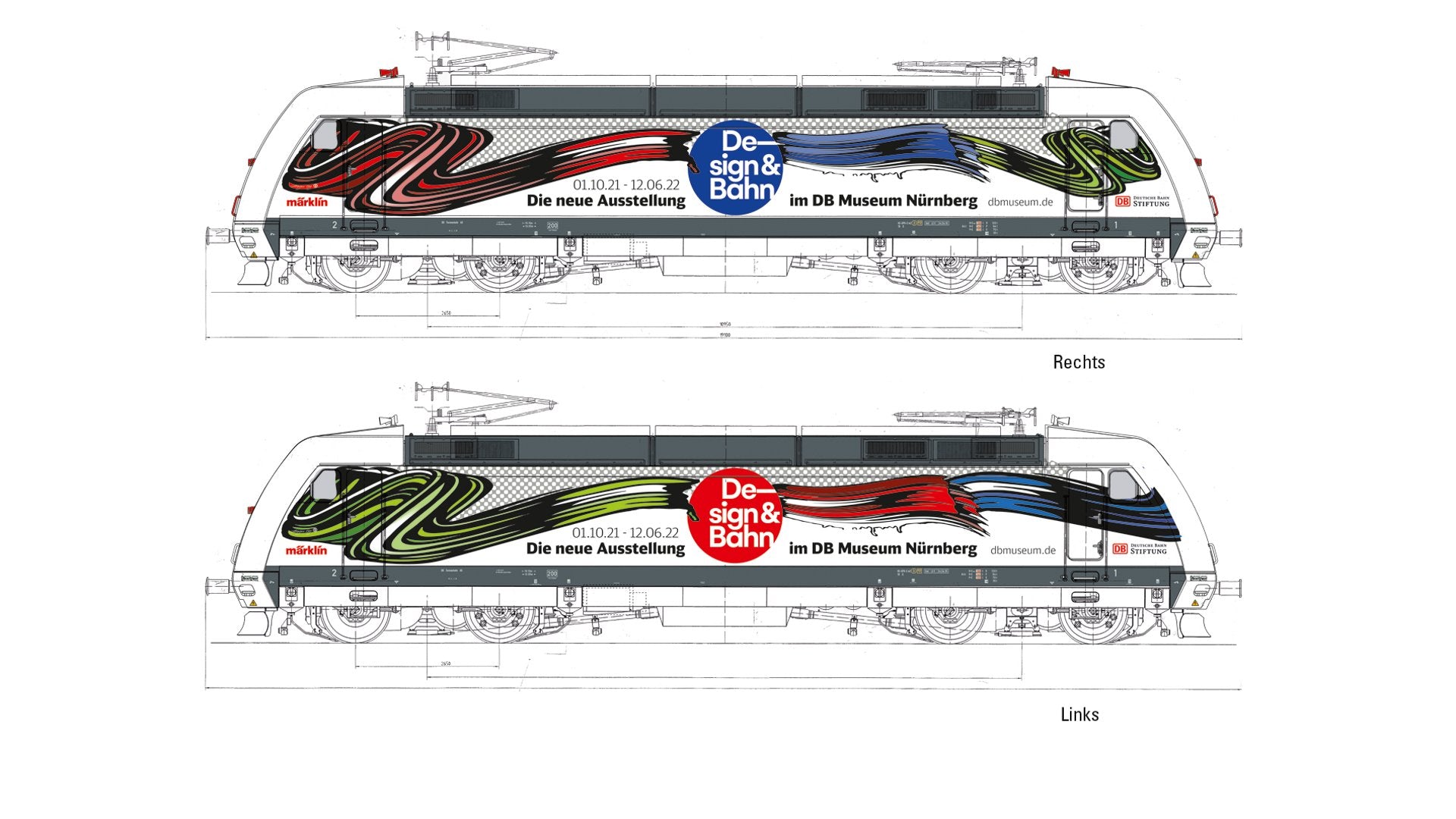

Trix 25379 Class 101 Electric Locomotive
Model: The locomotive has a digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion. 4 axles powered. Traction tires. The triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. Long-distance headlights can be controlled separately. Cab lighting can be controlled. The headlights at Locomotive End 2 and 1 can be turned off separately in digital operation. When the headlights are turned off at both ends, the double "A" light function is on at both ends. Maintenance-free warm white and red LEDs are used for the lighting. The locomotive has couplers with a guide mechanism. Length over the buffers 21.9 cm / 8-5/8".
Highlights:
- First time for all 4 axles to be powered.
- Cab lighting.
- Couplers with a guide mechanism.
- DCC/mfx digital decoder.
In cooperation with the DB Museum, Nürnberg.
This model can be found in an AC version in the Märklin H0 assortment under item number 39379.
One-time series.
Features:
- Era 6
- DCC decoder
- mfx Digital decoder with up to 32 digitally controlled functions. The quantity depends on the controller being used
- Sound effects circuit
- Triple headlights and two red marker lights that change over with the direction of travel.
- Metal locomotive frame and body
- Marklin close couplers in standard pocket with guide mechanism
Digital Functions:
| DCC | SX2 | SX |
MFX |
|
| Headlight(s) | · | · | ||
| Electric locomotive op. sounds | · | · | ||
| Horn | · | · | ||
| Long distance headlights | · | · | ||
| Direct control | · | · | ||
| Engineer’s cab lighting | · | · | ||
| Headlight(s): Cab2 End | · | · | ||
| High Pitch Horn | · | · | ||
| Headlight(s): Cab1 End | · | · | ||
| Sound of squealing brakes off | · | · | ||
| Station Announcements | · | · | ||
| Conductor's Whistle | · | · | ||
| Blower motors | · | · | ||
| Compressor | · | · | ||
| Letting off Air | · | · | ||
| Compressor | · | · | ||
| Letting off Air | · | · | ||
| Switching maneuver | · | · | ||
| Sanding | · | · | ||
| SIFA warning sound | · | · | ||
| Switching range + switching light | · | · | ||
| Sound of Couplers Engaging | · | · | ||
| Sound of uncoupling | · | · | ||
| Pantograph Sounds | · | · |
Warning: Adults only
