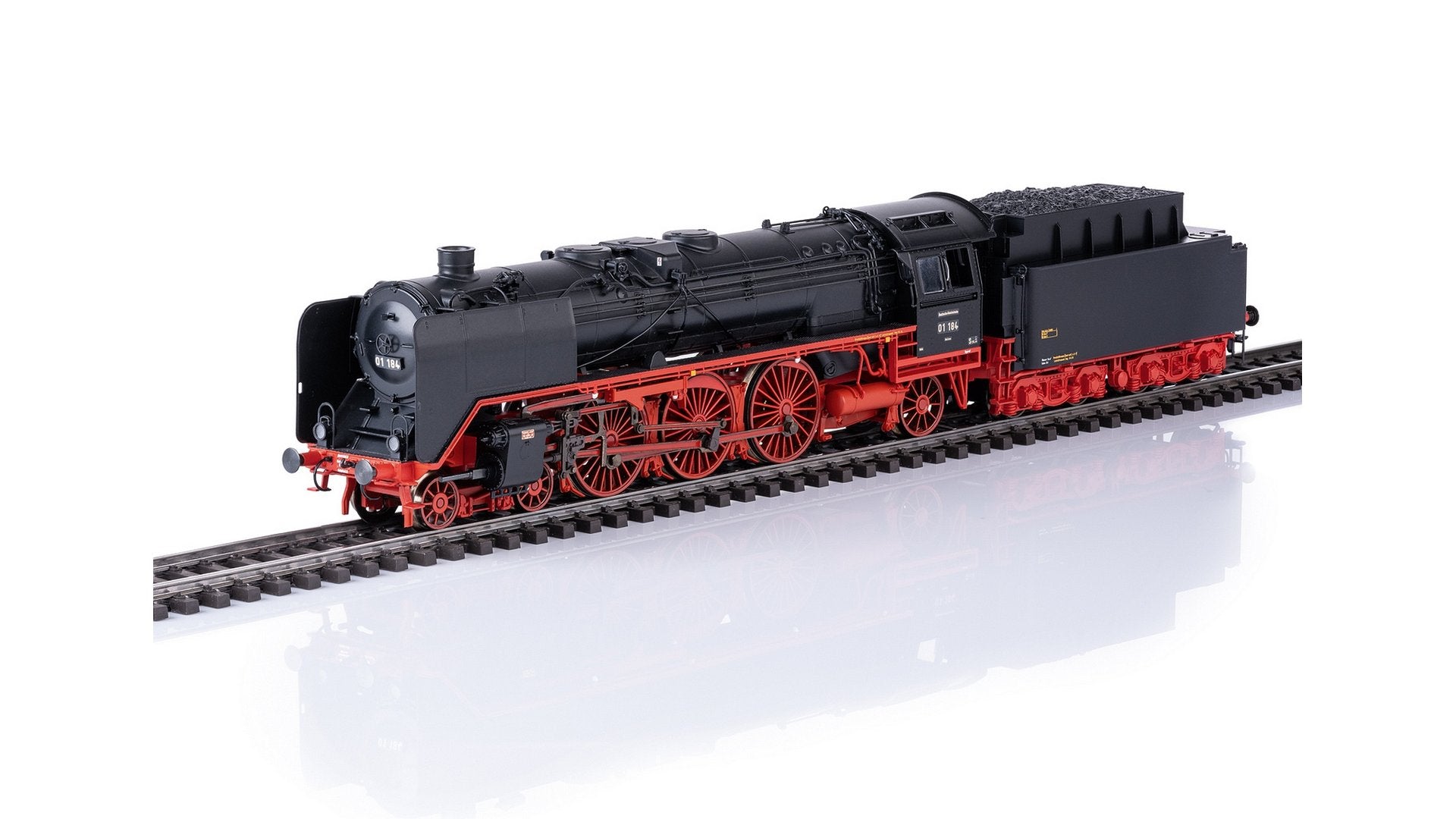

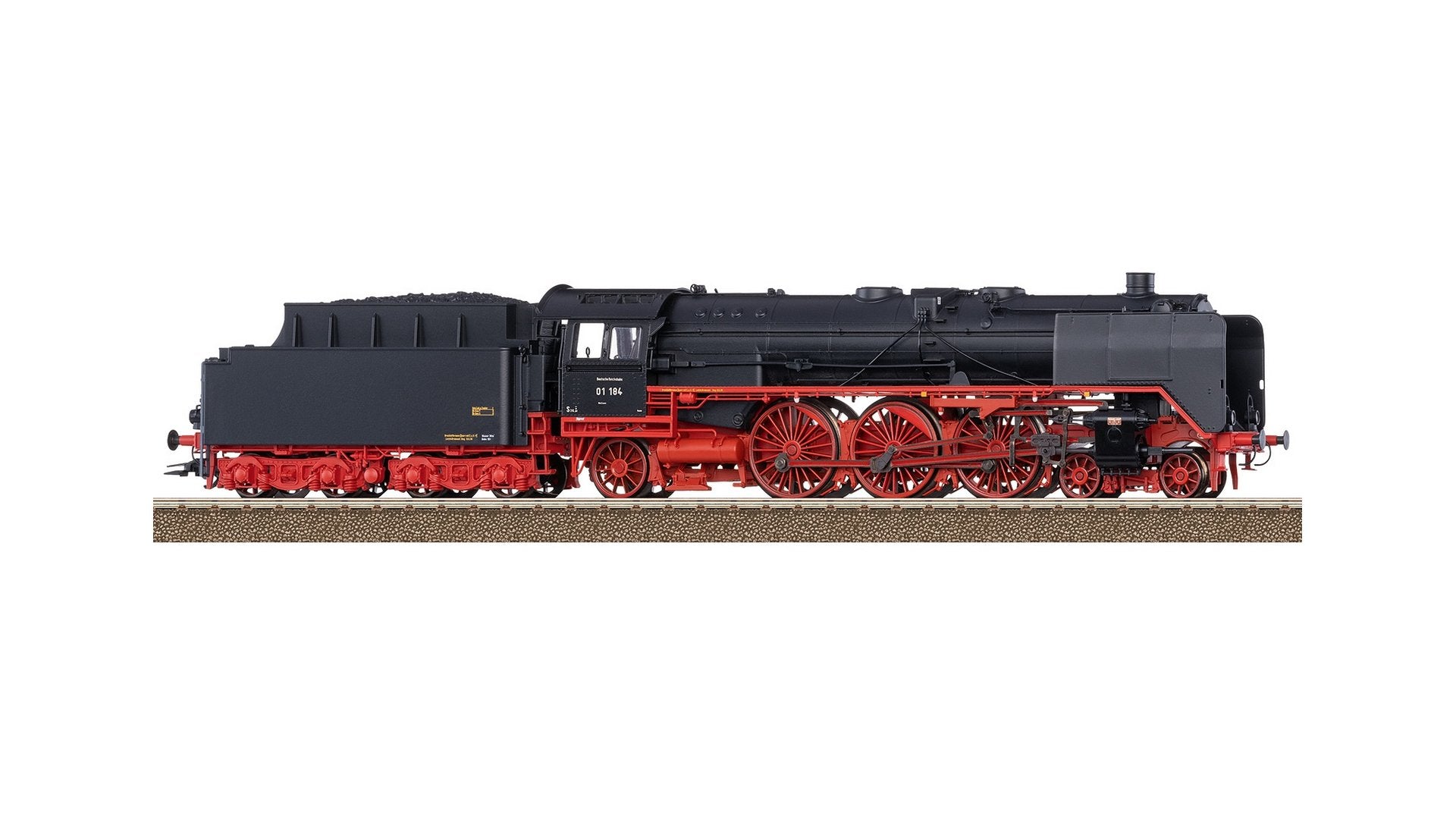

Trix T25001 Class 01 Steam Locomotive
Model: The locomotive has a digital decoder and extensive light and sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 3 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. The 7226 smoke unit can be installed in the locomotive. The dual headlights change over with the direction of travel. They and the smoke unit that can be installed in the locomotive will work in conventional operation and can be controlled digitally. Firebox flickering can be controlled digitally. Maintenance-free warm white and red LEDs are used for the lighting. There is a close coupling with a guide mechanism between the locomotive and tender. There is a close coupler with a guide mechanism and an NEM pocket on the tender. Piston rod protective sleeves and brake hoses are included. The minimum radius for operation is 360 mm / 14-3/16". Length over the buffers 27.5 cm / 10-13/16".
An express train car set to go with this locomotive can be found in the Trix H0 assortment under item number 23650.
This model can be found in an AC version in the Marklin assortment under item number 39003.
Spare parts for our articles can be found here in our spare parts search.
Highlights:
- Locomotive for the anniversary "100th Anniversary of the Class 01 Standard Design Steam Locomotive".
- Detailed construction mostly of metal.
- Digitally controlled firebox flickering.
- RailCom capable DCC/mfx digital decoder included and extensive operation and sound functions.
- Steam locomotive to go with the express train car set including the type PwPost4u-28 mail and baggage car as new tooling, item number 23650.
Prototype: German State Railroad Company (DRG) class 01 express steam locomotive, with a type 2´2´T34 coal tender. Wagner smoke deflectors and smoke box with central lock. Locomotive road number 01 184. The locomotive looks as it did around 1936.
Digital Functions:
| Â | DCC | SX2 | SX | MFX |
| Headlight(s) | • |  |  | • |
| Smoke generator contact | • |  |  | • |
| Steam locomotive op. sounds | • |  |  | • |
| Locomotive whistle | • |  |  | • |
| Direct control | • |  |  | • |
| Sound of squealing brakes off | • |  |  | • |
| Coal being shoveled and firebox flickering | • |  |  | • |
| Flickering Light in Fire Box | • |  |  | • |
| Air Pump | • |  |  | • |
| Letting off Steam | • |  |  | • |
| Sound of coal being shoveled | • |  |  | • |
| Tipping grate | • |  |  | • |
| Water Pump | • |  |  | • |
| Injectors | • |  |  | • |
| Whistle for switching maneuver | • |  |  | • |
| Replenishing coal | • |  |  | • |
| Replenishing water | • |  |  | • |
| Replenishing sand | • |  |  | • |
| Sanding | • |  |  | • |
| "Switcher Double ""A"" Light" | • |  |  | • |
| Switching maneuver | • |  |  | • |
| Generator Sounds | • |  |  | • |
| On/off function | • |  |  | • |
| Rail Joints | • |  |  | • |
| Safety Valve | • |  |  | • |
| Sound of Couplers Engaging | • |  |  | • |
| Sound of uncoupling | • |  |  | • |
| Conductor's Whistle | • |  |  | • |
Specifications:
- Length over the buffers approximately 2.75 cm
- Scale: H0 (1:87)
- Type: Steam Locomotives
Warning
|
ATTENTION: not suitable for children under 15 years. This product contains small parts that may be a choking hazard. |
